Socket for XSR Connector

XSR CONNECTOR

Avez-vous des questions sur ce produit?

Contactez notre spécialiste du connecteur

Envoyez-moi une offre personnalisée

Télécharger la fiche produit

Plus d’infos sur cette marque:

JST

Number Of Poles

Article Number	02XSR-36S
Number Of Contacts	2
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.6mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.60 mm
Rated Current (ac/dc)	0.2 A
Rated Voltage (ac/dc)	30 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	04XSR-36S
Number Of Contacts	4
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.6mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.60 mm
Rated Current (ac/dc)	0.2 A
Rated Voltage (ac/dc)	30 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	06XSR-36S
Number Of Contacts	6
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.6mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.60 mm
Rated Current (ac/dc)	0.2 A
Rated Voltage (ac/dc)	30 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	10XSR-36S
Number Of Contacts	10
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.6mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.60 mm
Rated Current (ac/dc)	0.2 A
Rated Voltage (ac/dc)	30 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	16XSR-36S
Number Of Contacts	16
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.6mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.60 mm
Rated Current (ac/dc)	0.2 A
Rated Voltage (ac/dc)	30 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	20XSR-36S
Number Of Contacts	20
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.6mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.60 mm
Rated Current (ac/dc)	0.2 A
Rated Voltage (ac/dc)	30 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	22XSR-36S
Number Of Contacts	22
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.6mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.60 mm
Rated Current (ac/dc)	0.2 A
Rated Voltage (ac/dc)	30 V
Pcb Mount Style	Surface Mount Technology (SMT)

Les propriétés diffèrent selon les variantes et sous-variantes

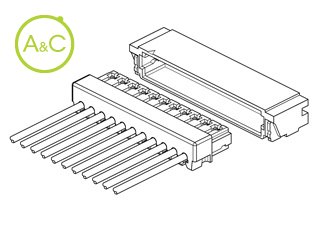

This is the world's smallest 0.6mm pitch ID connector for deSCrete wires. This wire to board miniaturized connector has a mounting height of 1.45mm and depth of 3.0mm. Space saving Twin U-slot insulation displacement section New strain relief structure Suitable for fine wires Applicable to automatic ID machines Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
