Receptacle for 2.5FJ Connector
Avez-vous des questions sur ce produit?
Plus d’infos sur cette marque:
JST
Number Of Poles
- 5
- 10
Article Number | 05R-2.5FJ |
Number Of Contacts | 5 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 2.5mm Pitch Board-to-Board Connector |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 2.50 mm |
Rated Current (ac/dc) | 1.0 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Through-hole Technology (THT) |
Les propriétés diffèrent selon les variantes et sous-variantes

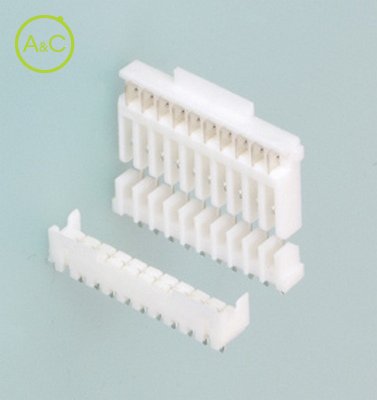

The 2.5FJ connector is a 2.5mm (.098")pitch board-to-board connector. The connector halves can be mated after the installation of the printed circuit boards in their enclosure.
Flexible connection absorbs circuit board misalignment
After the plug and header are mounted on adjoining boards, an extended flexible connection between them offers greater freedom of design. The flexible connector compensates for secure connection even if the boards are out of line up to 1.0mm (.039").
Provides a low profile mount and allows connection after mounting
This compact, low profile design feature a 2.5mm (.098") pitch and slim 6.0mm (.236") mounting height. Board-to-board connection is easier because the connection can be made after the installation of the printed circuit boards in their enclosure.
Assures a reliable connection
Superior reliability is assured even if the assembly is subjected to external stress and vibration. This sturdiness is due to asecure locking device and the use of JST's high-retention zigzag fork contacts.
Standards
UL Recognized E60389
CSA Certified LR20812
RoHS Compliant
