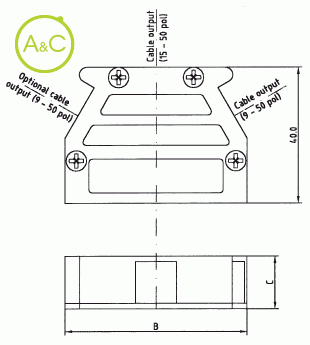

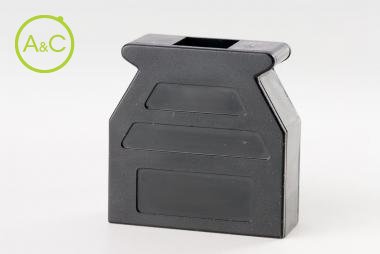

Plastic hood black and metallized with slide-/clip locking and 3 cable outputs
Avez-vous des questions sur ce produit?
Plus d’infos sur cette marque:
Provertha
Provertha
Number Of Poles
- 9
- 15
- 25
- 37
- 50
| Article Number | 07 09 0BT 001 | 07 09 0M 001 |
| Number Of Contacts | 9 | 9 |
| Upper Temperature | +90 °C | +90 °C |
| Lower Temperature | -20 °C | -20 °C |
| Plating | Nickel plated copper | Nickel plated copper |
| Remark** | Multi opening possible | Multi opening possible |
| Material | ABS UL 94-V0 | ABS UL 94-V0 |
| Extra Information | A two-part hood providing 3 cable outputs (9 pole 2 cable outputs) Large interior space for your wiring | A two-part hood providing 3 cable outputs (9 pole 2 cable outputs) Large interior space for your wiring |
| Hood Version | black | Metallized |
| Locking Style | Slide lock Clip | Slide lock Clip |
| Cable Exit | Straight Angled: 2x30°** | Straight Angled: 2x30°** |
| Cable Fixing | Clamp intern (al) Clamp extern (al) Crimp flange | Clamp intern (al) Clamp extern (al) Crimp flange |
| Cable Diameter Internal Cable Clamp | 4-10 | 4-10 |
| Cable Diameter External Cable Clamp | 4-14 | 4-14 |
| Cable Diameter Crimping Flange | 2,7-8,7 | 2,7-8,7 |
| Material/surface Cover Screws | ST Zinc plated | ST Zinc plated |
Les propriétés diffèrent selon les variantes et sous-variantes
