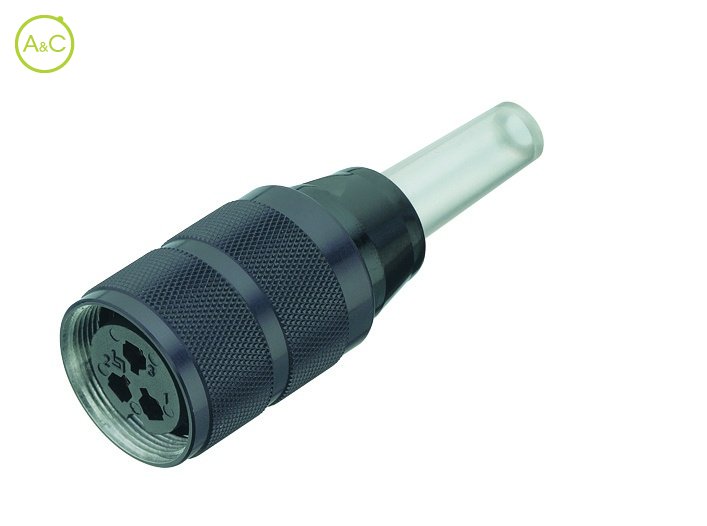

Female cable connector

Avez-vous des questions sur ce produit?

Plus d’infos sur cette marque:

Article Number	09 0034 00 03

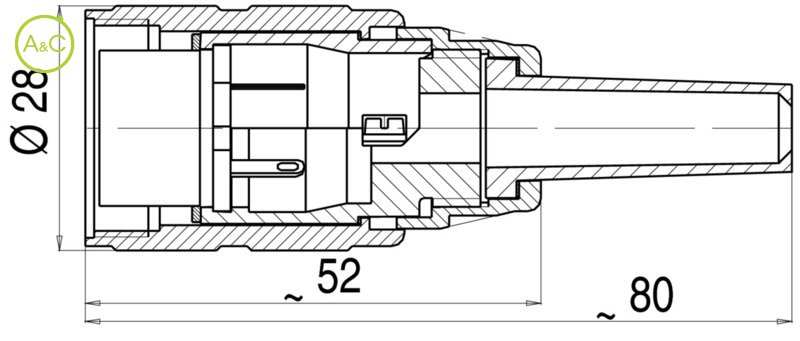

Connector Diameter	28 mm
Number Of Contacts	3 contacts
Connector Locking System	Screw (M25)
Termination	Solder
Wire Section	1.5 mm²
Protection Degree	IP40
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	250
Rated Impuls Voltage	2500 V
Pollution Degree	1
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	10 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuZn (Brass)
Plating	Ag (Silver)
Material Of Insert	PBT (UL 94 V-0)
Material Of Housing	GD-Al (anodized)
Cable Outlet	5-8 mm
Fiche produit	Télécharger la fiche produit

Article Number	09 0038 00 05
Connector Diameter	28 mm
Number Of Contacts	5 contacts
Connector Locking System	Screw (M25)
Termination	Solder
Wire Section	1.5 mm²
Protection Degree	IP40
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	250
Rated Impuls Voltage	2500 V
Pollution Degree	1
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	10 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuZn (Brass)
Plating	Ag (Silver)
Material Of Insert	PBT (UL 94 V-0)
Material Of Housing	GD-Al (anodized)
Cable Outlet	5-8 mm
Fiche produit	Télécharger la fiche produit

Article Number	09 0042 00 07
Connector Diameter	28 mm
Number Of Contacts	7 contacts
Connector Locking System	Screw (M25)
Termination	Solder
Wire Section	0.75 mm²
Protection Degree	IP40
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	250
Rated Impuls Voltage	2500 V
Pollution Degree	1
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	5 A
Max. Contact Resistance	8 mΩ
Material Of Contact	CuZn (Brass)
Plating	Ag (Silver)
Material Of Insert	PET (UL 94 V-0)
Material Of Housing	GD-Al (anodized)
Cable Outlet	5-8 mm
Fiche produit	Télécharger la fiche produit

Article Number	09 0446 00 12
Connector Diameter	28 mm
Number Of Contacts	12 contacts
Connector Locking System	Screw (M25)
Termination	Solder
Wire Section	0.75 mm²
Protection Degree	IP40
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	1
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	5 A
Max. Contact Resistance	8 mΩ
Material Of Contact	CuZn (Brass)
Plating	Ag (Silver)
Material Of Insert	PET (UL 94 V-0)
Material Of Housing	GD-Al (anodized)
Cable Outlet	5-8 mm
Fiche produit	Télécharger la fiche produit

Les propriétés diffèrent selon les variantes et sous-variantes
