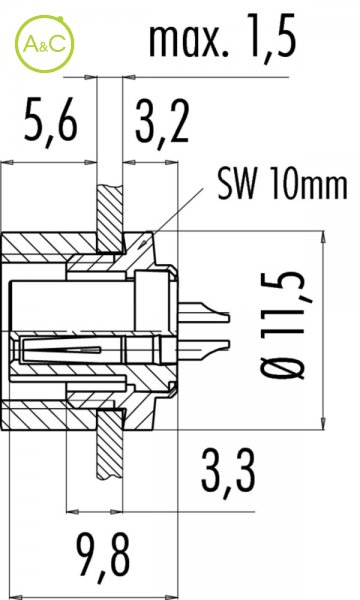

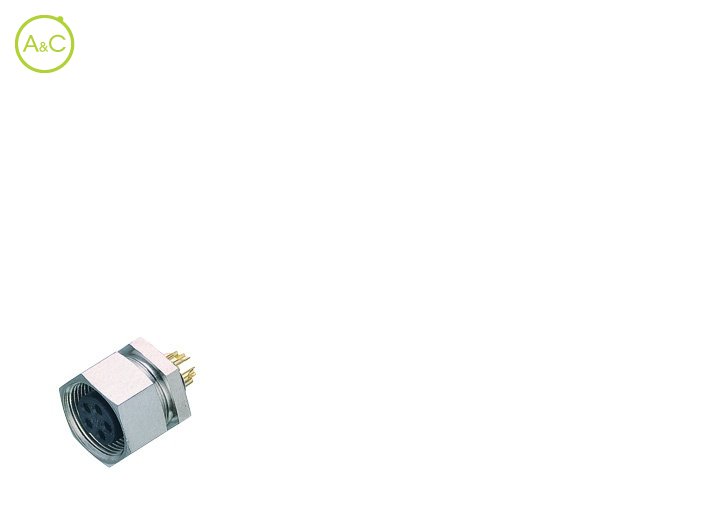

Female panel mount connector

Avez-vous des questions sur ce produit?

Plus d’infos sur cette marque:

Article Number	09 0074 00 02
Connector Diameter	11.5 mm
Number Of Contacts	2 contacts
Connector Locking System	Screw (M9)
Termination	Solder
Wire Section	0.25 mm²
Protection Degree	IP40
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	1
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	4 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PA (UL 94 V-0)
Material Of Housing	CuZn (Brass nickel plated)
Fiche produit	Télécharger la fiche produit

Article Number	09 0078 00 03
Connector Diameter	11.5 mm
Number Of Contacts	3 contacts
Connector Locking System	Screw (M9)
Termination	Solder
Wire Section	0.25 mm²
Protection Degree	IP40
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	1
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	4 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PA (UL 94 V-0)
Material Of Housing	CuZn (Brass nickel plated)
Fiche produit	Télécharger la fiche produit

Article Number	09 0082 00 04
Connector Diameter	11.5 mm
Number Of Contacts	4 contacts
Connector Locking System	Screw (M9)
Termination	Solder
Wire Section	0.25 mm²
Protection Degree	IP40
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	1
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	3 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PA (UL 94 V-0)
Material Of Housing	CuZn (Brass nickel plated)
Fiche produit	Télécharger la fiche produit

Article Number	09 0098 00 05
Connector Diameter	11.5 mm
Number Of Contacts	5 contacts
Connector Locking System	Screw (M9)
Termination	Solder
Wire Section	0.25 mm²
Protection Degree	IP40
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	1
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	3 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PA (UL 94 V-0)
Material Of Housing	CuZn (Brass nickel plated)
Fiche produit	Télécharger la fiche produit

Article Number	09 0478 00 07
Connector Diameter	11.5 mm
Number Of Contacts	7 contacts
Connector Locking System	Screw (M9)
Termination	Solder
Wire Section	0.14 mm²
Protection Degree	IP40
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	1
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	1 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PA (UL 94 V-0)
Material Of Housing	CuZn (Brass nickel plated)
Fiche produit	Télécharger la fiche produit

Article Number	09 0482 00 08
Connector Diameter	11.5 mm
Number Of Contacts	8 contacts
Connector Locking System	Screw (M9)
Termination	Solder
Wire Section	0.14 mm²
Protection Degree	IP40
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	1
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	1 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PA (UL 94 V-0)
Material Of Housing	CuZn (Brass nickel plated)
Fiche produit	Télécharger la fiche produit

Les propriétés diffèrent selon les variantes et sous-variantes
