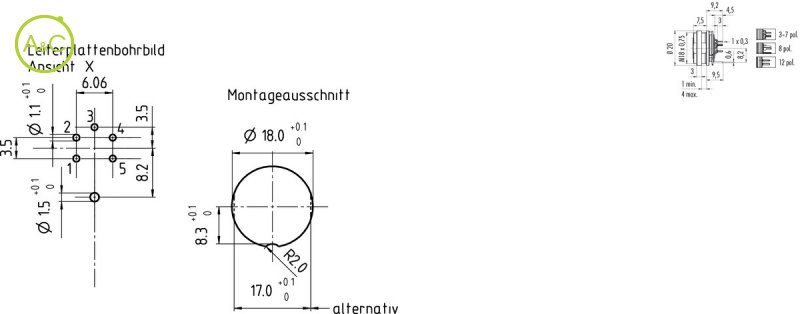

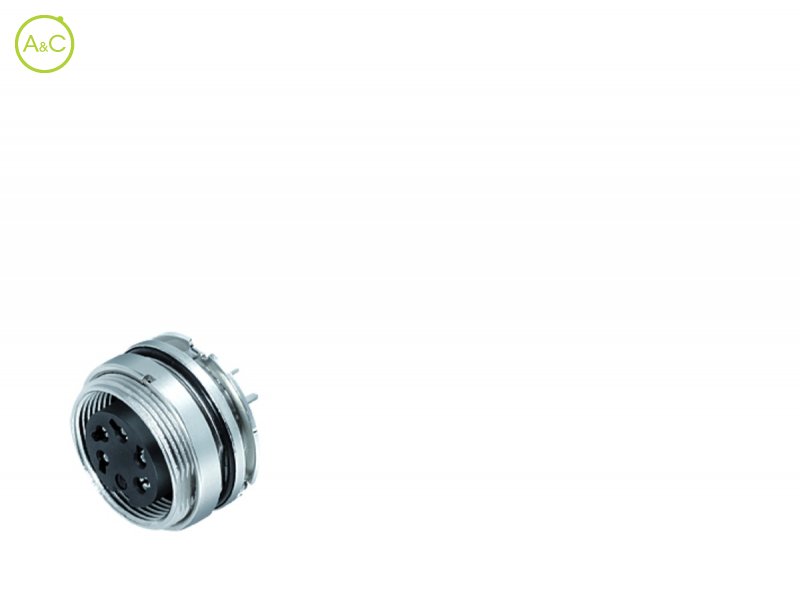

Female panel mount connector

With mass contact
UL-approval

09-0108-290-03

09-0108-290-03

Avez-vous des questions sur ce produit?

Contactez notre spécialiste du connecteur

Envoyez-moi une offre personnalisée

Plus d’infos sur cette marque:

Number Of Poles

3 DIN
4
5
6 DIN
7
8 DIN
12

Article Number	09 0108 290 03
Connector Diameter	20 mm
Number Of Contacts	3 DIN contacts
Connector Locking System	Screw (M16)
Termination	Dip-solder
Protection Degree	IP67
Upper Temperature	+95 °C
Lower Temperature	-40 °C
Rated Voltage	250
Rated Impuls Voltage	1500 V
Pollution Degree	1
Overvoltage Categorie	I
Material Group	III
Rated Current (40°)	7 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Ag (Silver)
Material Of Insert	PBT (UL 94 V-0)
Fiche produit	Télécharger la fiche produit

Article Number	09 0112 290 04
Connector Diameter	20 mm
Number Of Contacts	4 contacts
Connector Locking System	Screw (M16)
Termination	Dip-solder
Protection Degree	IP67
Upper Temperature	+95 °C
Lower Temperature	-40 °C
Rated Voltage	250
Rated Impuls Voltage	1500 V
Pollution Degree	1
Overvoltage Categorie	I
Material Group	III
Rated Current (40°)	6 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Ag (Silver)
Material Of Insert	PBT (UL 94 V-0)
Fiche produit	Télécharger la fiche produit

Article Number	09 0116 290 05
Connector Diameter	20 mm
Number Of Contacts	5 contacts
Connector Locking System	Screw (M16)
Termination	Dip-solder
Protection Degree	IP67
Upper Temperature	+95 °C
Lower Temperature	-40 °C
Rated Voltage	250
Rated Impuls Voltage	1500 V
Pollution Degree	1
Overvoltage Categorie	I
Material Group	III
Rated Current (40°)	6 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Ag (Silver)
Material Of Insert	PBT (UL 94 V-0)
Fiche produit	Télécharger la fiche produit

Article Number	09 0124 290 06
Connector Diameter	20 mm
Number Of Contacts	6 DIN contacts
Connector Locking System	Screw (M16)
Termination	Dip-solder
Protection Degree	IP67
Upper Temperature	+95 °C
Lower Temperature	-40 °C
Rated Voltage	250
Rated Impuls Voltage	1500 V
Pollution Degree	1
Overvoltage Categorie	I
Material Group	III
Rated Current (40°)	5 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Ag (Silver)
Material Of Insert	PBT (UL 94 V-0)
Fiche produit	Télécharger la fiche produit

Article Number	09 0128 290 07
Connector Diameter	20 mm
Number Of Contacts	7 contacts
Connector Locking System	Screw (M16)
Termination	Dip-solder
Protection Degree	IP67
Upper Temperature	+95 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	800 V
Pollution Degree	1
Overvoltage Categorie	I
Material Group	III
Rated Current (40°)	5 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Ag (Silver)
Material Of Insert	PBT (UL 94 V-0)
Fiche produit	Télécharger la fiche produit

Article Number	09 0174 290 08
Connector Diameter	20 mm
Number Of Contacts	8 DIN contacts
Connector Locking System	Screw (M16)
Termination	Dip-solder
Protection Degree	IP67
Upper Temperature	+95 °C
Lower Temperature	-40 °C
Rated Voltage	60
Rated Impuls Voltage	500 V
Pollution Degree	1
Overvoltage Categorie	I
Material Group	III
Rated Current (40°)	5 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Ag (Silver)
Material Of Insert	PBT (UL 94 V-0)
Fiche produit	Télécharger la fiche produit

Article Number	09 0132 290 12
Connector Diameter	20 mm
Number Of Contacts	12 contacts
Connector Locking System	Screw (M16)
Termination	Dip-solder
Protection Degree	IP67
Upper Temperature	+95 °C
Lower Temperature	-40 °C
Rated Voltage	60
Rated Impuls Voltage	500 V
Pollution Degree	1
Overvoltage Categorie	I
Material Group	III
Rated Current (40°)	5 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Ag (Silver)
Material Of Insert	PBT (UL 94 V-0)
Fiche produit	Télécharger la fiche produit

Les propriétés diffèrent selon les variantes et sous-variantes
