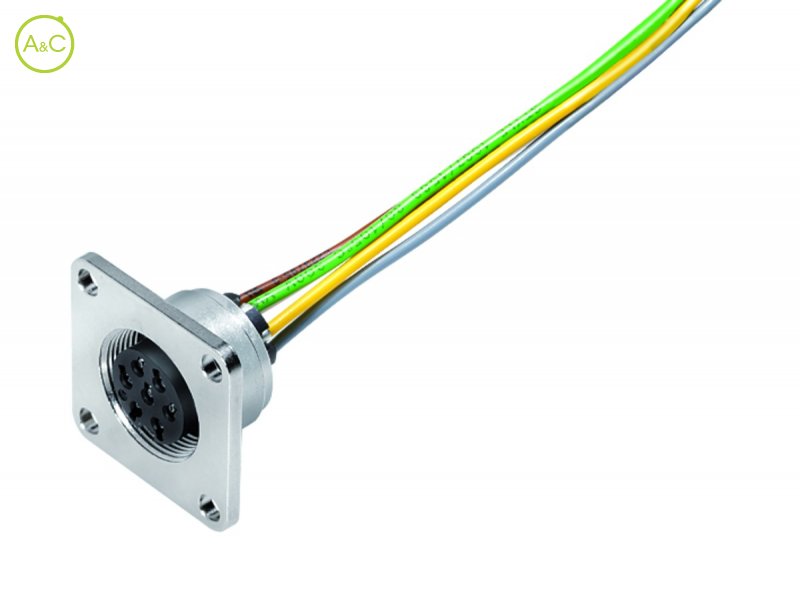

Female panel mount connector

Avez-vous des questions sur ce produit?

Plus d’infos sur cette marque:

Article Number	09 0112 320 04
Connector Diameter	17 mm
Number Of Contacts	4 contacts
Connector Locking System	Screw (M16)
Termination	Single wires
Wire Section	0.75 mm²
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+95 °C
Lower Temperature	-40 °C
Rated Voltage	300
Rated Impuls Voltage	1500 V
Pollution Degree	1
Overvoltage Categorie	I
Material Group	II
Rated Current (40°)	5 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Ag (Silver)
Material Of Insert	PBT (UL 94 V-0)
Fiche produit	Télécharger la fiche produit

Article Number	09 0116 320 05
Connector Diameter	17 mm
Number Of Contacts	5 contacts
Connector Locking System	Screw (M16)
Termination	Single wires
Wire Section	0.75 mm²
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+95 °C
Lower Temperature	-40 °C
Rated Voltage	300
Rated Impuls Voltage	1500 V
Pollution Degree	1
Overvoltage Categorie	I
Material Group	II
Rated Current (40°)	5 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Ag (Silver)
Material Of Insert	PBT (UL 94 V-0)
Fiche produit	Télécharger la fiche produit

Article Number	09 0124 320 06
Connector Diameter	17 mm
Number Of Contacts	6 DIN contacts
Connector Locking System	Screw (M16)
Termination	Single wires
Wire Section	0.75 mm²
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+95 °C
Lower Temperature	-40 °C
Rated Voltage	300
Rated Impuls Voltage	1500 V
Pollution Degree	1
Overvoltage Categorie	I
Material Group	II
Rated Current (40°)	5 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Ag (Silver)
Material Of Insert	PBT (UL 94 V-0)
Fiche produit	Télécharger la fiche produit

Article Number	09 0128 320 07
Connector Diameter	17 mm
Number Of Contacts	7 contacts
Connector Locking System	Screw (M16)
Termination	Single wires
Wire Section	0.75 mm²
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+95 °C
Lower Temperature	-40 °C
Rated Voltage	100
Rated Impuls Voltage	1200 V
Pollution Degree	1
Overvoltage Categorie	I
Material Group	II
Rated Current (40°)	5 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Ag (Silver)
Material Of Insert	PBT (UL 94 V-0)
Fiche produit	Télécharger la fiche produit

Article Number	09 0174 320 08
Connector Diameter	17 mm
Number Of Contacts	8 DIN contacts
Connector Locking System	Screw (M16)
Termination	Single wires
Wire Section	0.75 mm²
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+95 °C
Lower Temperature	-40 °C
Rated Voltage	100
Rated Impuls Voltage	1200 V
Pollution Degree	1
Overvoltage Categorie	I
Material Group	II
Rated Current (40°)	5 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Ag (Silver)
Material Of Insert	PBT (UL 94 V-0)
Fiche produit	Télécharger la fiche produit

Les propriétés diffèrent selon les variantes et sous-variantes
