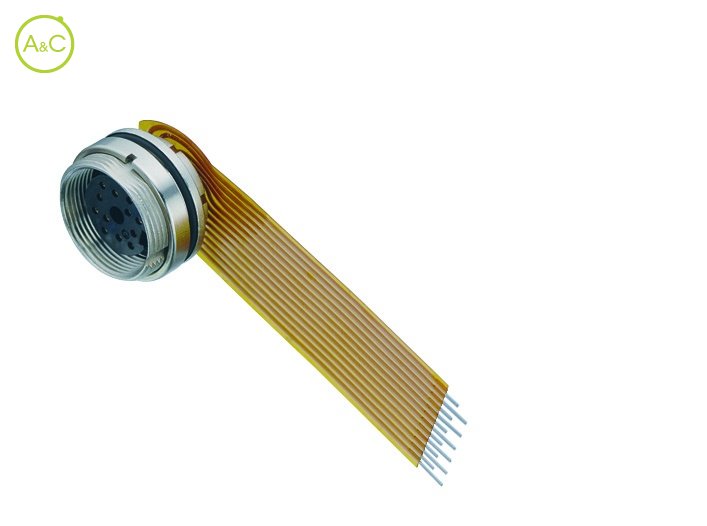

Female panel mount connector
Avez-vous des questions sur ce produit?
Plus d’infos sur cette marque:
Binder
Binder
Number Of Poles
- 12
| Article Number | 09 0132 65 12 |
| Connector Diameter | 20 mm |
| Number Of Contacts | 12 contacts |
| Connector Locking System | Screw (M16) |
| Termination | Dip solder |
| Protection Degree | IP67 |
| Mating Cycles | >500 times |
| Upper Temperature | +95 °C |
| Lower Temperature | -40 °C |
| Rated Voltage | 60 (32) |
| Rated Impuls Voltage | 500 V |
| Pollution Degree | 1 (2)* |
| Overvoltage Categorie | I (II)* |
| Material Group | III |
| Rated Current (40°) | 3 A |
| Max. Contact Resistance | 3 mΩ |
| Material Of Contact | CuSn (Bronze) |
| Plating | Au (Gold) |
| Material Of Insert | PBT (UL 94 V-0) |
| Material Of Housing | Zinc diecasting nickel plated |
| Remark** | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
| Fiche produit | Télécharger la fiche produit |
Les propriétés diffèrent selon les variantes et sous-variantes
