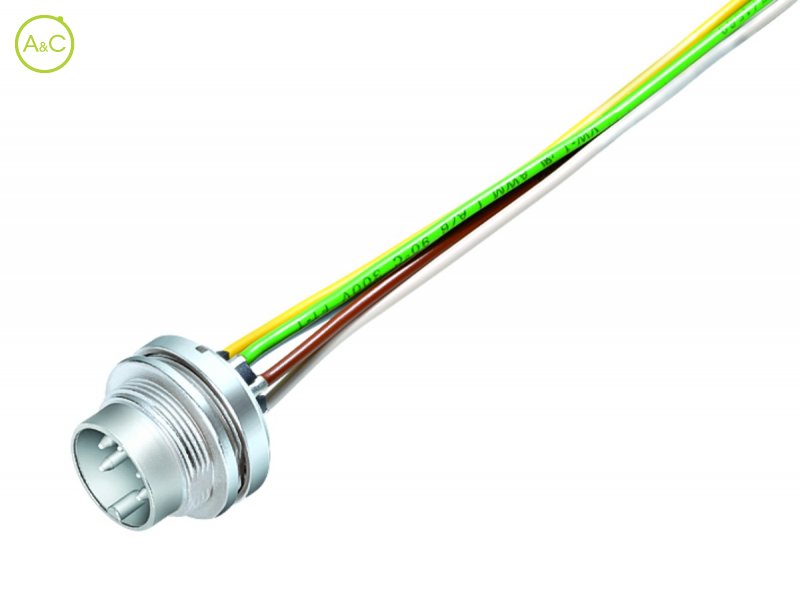

Male panel mount connector

Avez-vous des questions sur ce produit?

Plus d’infos sur cette marque:

Article Number	09 0311 702 04
Connector Diameter	20 mm
Number Of Contacts	4 contacts
Connector Locking System	Screw (M16)
Termination	Solder
Wire Section	0.75 mm²
Protection Degree	IP40
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-30 °C
Rated Voltage	300
Rated Impuls Voltage	1500 V
Pollution Degree	1
Overvoltage Categorie	I
Material Group	II
Rated Current (40°)	5 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuZn (Brass)
Plating	Ag (Silver)
Material Of Insert	PBT (UL 94 V-0)
Fiche produit	Télécharger la fiche produit

Article Number	09 0315 702 05
Connector Diameter	20 mm
Number Of Contacts	5 contacts
Connector Locking System	Screw (M16)
Termination	Strands
Wire Section	0.75 mm²
Protection Degree	IP40
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-30 °C
Rated Voltage	300
Rated Impuls Voltage	1500 V
Pollution Degree	1
Overvoltage Categorie	I
Material Group	II
Rated Current (40°)	5 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuZn (Brass)
Plating	Ag (Silver)
Material Of Insert	PBT (UL 94 V-0)
Fiche produit	Télécharger la fiche produit

Article Number	09 0323 702 06
Connector Diameter	20 mm
Number Of Contacts	6 DIN contacts
Connector Locking System	Screw (M16)
Termination	Strands
Wire Section	0.75 mm²
Protection Degree	IP40
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-30 °C
Rated Voltage	300
Rated Impuls Voltage	1500 V
Pollution Degree	1
Overvoltage Categorie	I
Material Group	II
Rated Current (40°)	5 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuZn (Brass)
Plating	Ag (Silver)
Material Of Insert	PBT (UL 94 V-0)
Fiche produit	Télécharger la fiche produit

Article Number	09 0327 702 07
Connector Diameter	20 mm
Number Of Contacts	7
Connector Locking System	Screw (M16)
Termination	Strands
Wire Section	0.75 mm²
Protection Degree	IP40
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-30 °C
Rated Voltage	100
Rated Impuls Voltage	1200 V
Pollution Degree	1
Overvoltage Categorie	I
Material Group	II
Rated Current (40°)	5 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuZn (Brass)
Plating	Ag (Silver)
Material Of Insert	PBT (UL 94 V-0)
Fiche produit	Télécharger la fiche produit

Article Number	09 0473 702 08
Connector Diameter	20 mm
Number Of Contacts	8 DIN contacts
Connector Locking System	Screw (M16)
Termination	Strands
Wire Section	0.75 mm²
Protection Degree	IP40
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-30 °C
Rated Voltage	100
Rated Impuls Voltage	1200 V
Pollution Degree	1
Overvoltage Categorie	I
Material Group	II
Rated Current (40°)	5 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuZn (Brass)
Plating	Ag (Silver)
Material Of Insert	PBT (UL 94 V-0)
Fiche produit	Télécharger la fiche produit

Les propriétés diffèrent selon les variantes et sous-variantes
