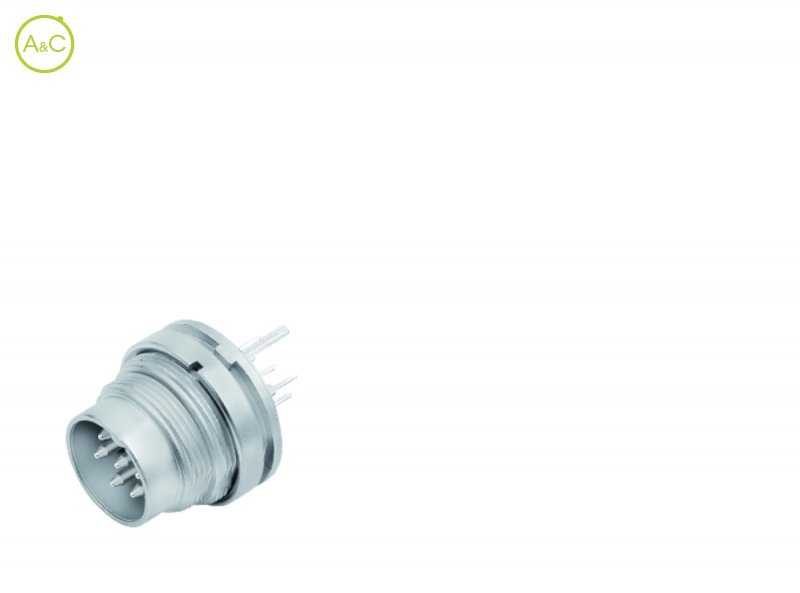

Male panel mount connector

  • Dip solder, front fastened, with shield connection

Number Of Poles

  • 5
  • 6 DIN
  • 8 DIN
  • 12
Article Number 09 0315 290 05
Connector Diameter 20 mm
Number Of Contacts 5 contacts
Connector Locking System Screw (M16)
Termination Dip solder
Protection Degree IP40
Mating Cycles >500 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 250
Rated Impuls Voltage 1500 V
Pollution Degree 1
Overvoltage Categorie I
Material Group III
Rated Current (40°) 6 A
Max. Contact Resistance 5 mΩ
Material Of Contact CuZn (Brass)
Material Of Insert PBT ( UL 94 V-0)
Material Of Housing Brass nickel plated / zinc diecasting nickel plated
Fiche produit Télécharger la fiche produit
Les propriétés diffèrent selon les variantes et sous-variantes
