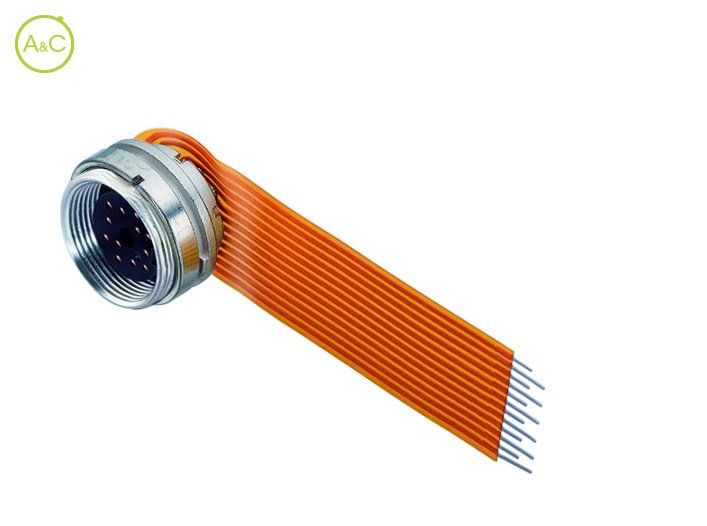

Female panel mount connector
Avez-vous des questions sur ce produit?
Plus d’infos sur cette marque:
Binder
Number Of Poles
- 12
Article Number | 09 0332 65 12 |
Connector Diameter | 20 mm |
Number Of Contacts | 12 contacts |
Connector Locking System | Screw (M16) |
Termination | Dip solder |
Protection Degree | IP40 |
Mating Cycles | >500 times |
Upper Temperature | +85 °C |
Lower Temperature | -40 °C |
Rated Voltage | 60 (32) |
Rated Impuls Voltage | 500 V |
Pollution Degree | 1 (2)* |
Overvoltage Categorie | I (II)* |
Material Group | III |
Rated Current (40°) | 2 A |
Max. Contact Resistance | 3 mΩ |
Material Of Contact | CuZn (Brass) |
Plating | Au (Gold) |
Material Of Insert | PBT (UL 94 V-0) |
Material Of Housing | Zinc diecasting nickel plated |
Remark** | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
Fiche produit | Télécharger la fiche produit |
Les propriétés diffèrent selon les variantes et sous-variantes
