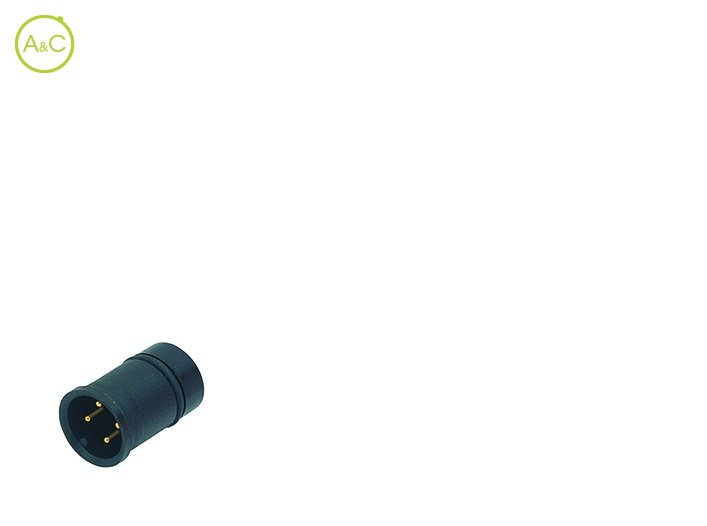

Male receptacle

Avez-vous des questions sur ce produit?

Plus d’infos sur cette marque:

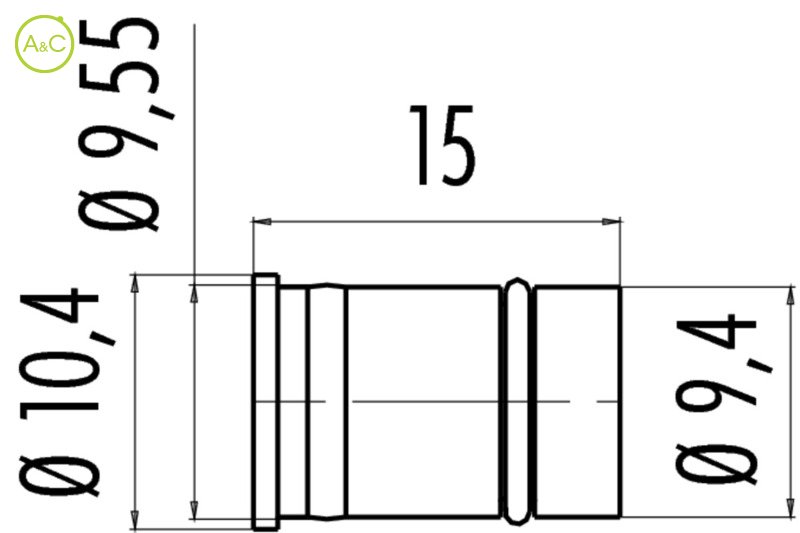

Article Number	09 0431 74 04	09 0431 73 04
Connector Diameter	10.4 mm	10.4 mm
Number Of Contacts	4 contacts	4 contacts
Connector Locking System	Screw (M12-A)	Screw (M12-A)
Termination	Solder	Solder
Protection Degree	IP67	IP67
Mating Cycles	>100 times	>100 times
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-40 °C	-40 °C
Rated Voltage	250	250
Rated Impuls Voltage	2500 V	2500 V
Pollution Degree	3	3
Overvoltage Categorie	II	II
Material Group	II	II
Rated Current (40°)	4 A	4 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PA	PA
Fiche produit	Télécharger la fiche produit	Télécharger la fiche produit

Article Number	09 0433 74 05
Connector Diameter	10.4 mm
Number Of Contacts	5 contacts
Connector Locking System	Screw (M12-A)
Termination	Solder
Protection Degree	IP67
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	4 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA
Fiche produit	Télécharger la fiche produit

Article Number	09 0381 274 08
Connector Diameter	10.4 mm
Number Of Contacts	8 contacts
Connector Locking System	Screw (M12-A)
Termination	Solder
Protection Degree	IP67
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	60
Rated Impuls Voltage	800 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	2 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA
Fiche produit	Télécharger la fiche produit

Les propriétés diffèrent selon les variantes et sous-variantes
