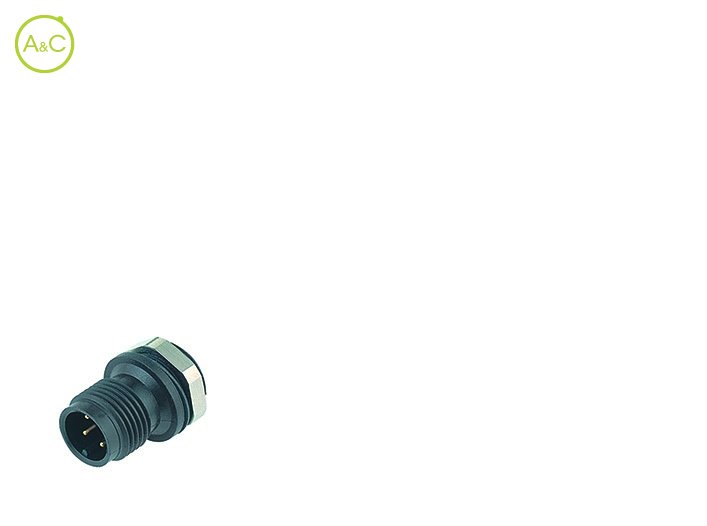

Male panel mount connector

Avez-vous des questions sur ce produit?

Plus d’infos sur cette marque:

Article Number	09 0431 81 04

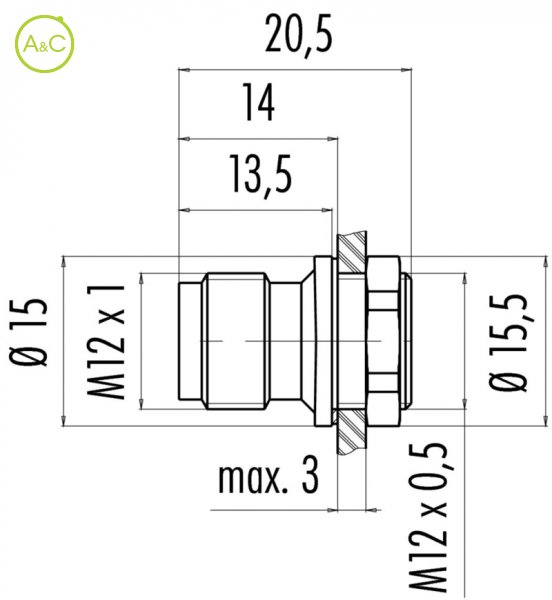

Connector Diameter	15.5 mm
Number Of Contacts	4 contacts
Connector Locking System	Screw (M12-A)
Termination	Solder
Wire Section	0.25 mm²
Protection Degree	IP67
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	250
Rated Impuls Voltage	2500 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	4 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA/PBT
Material Of Housing	PA
Fixing Thread	M12 x 0,5
Fiche produit	Télécharger la fiche produit

Article Number	09 0433 81 05
Connector Diameter	15.5 mm
Number Of Contacts	5 contacts
Connector Locking System	Screw (M12-A)
Termination	Solder
Wire Section	0.25 mm²
Protection Degree	IP67
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	4 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA/PBT
Material Of Housing	PA
Fixing Thread	M12 x 0,5
Fiche produit	Télécharger la fiche produit

Article Number	09 0381 81 08
Connector Diameter	15.5 mm
Number Of Contacts	8 contacts
Connector Locking System	Screw (M12-A)
Termination	Solder
Wire Section	0.25 mm²
Protection Degree	IP67
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	60
Rated Impuls Voltage	800 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	2 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA/PBT
Material Of Housing	PA
Fixing Thread	M12 x 0,5
Fiche produit	Télécharger la fiche produit

Les propriétés diffèrent selon les variantes et sous-variantes
