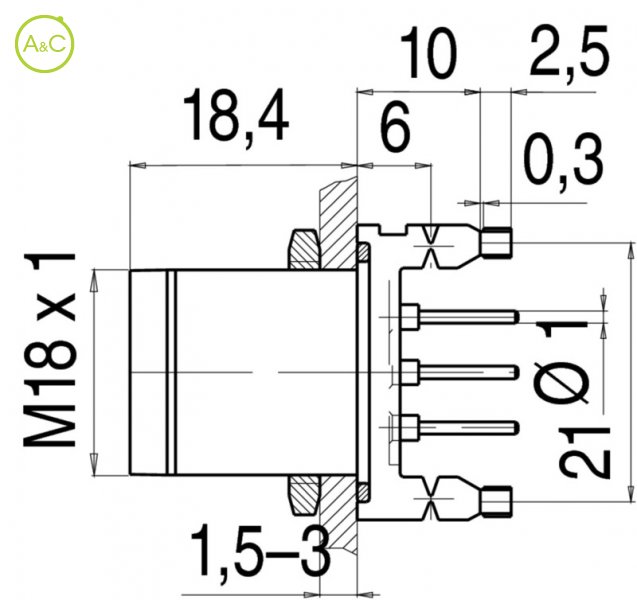

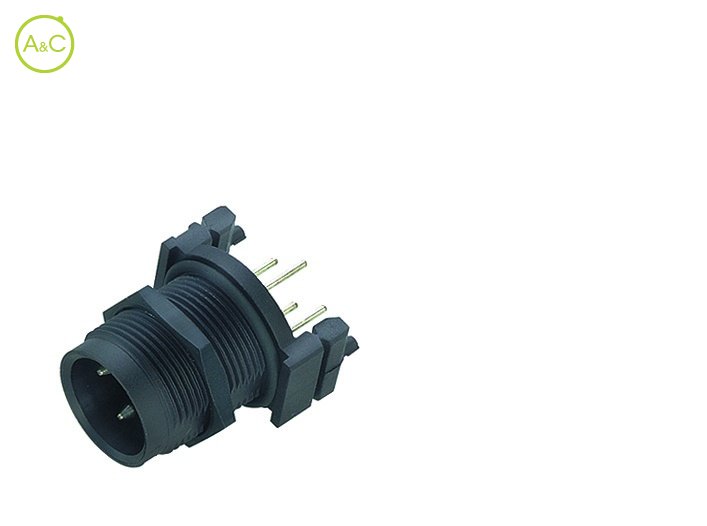

Male socket

Avez-vous des questions sur ce produit?

Plus d’infos sur cette marque:

Article Number	09 0441 90 04
Connector Diameter	21 mm
Number Of Contacts	4 contacts
Connector Locking System	Screw (M18)
Termination	Dip solder
Wire Section	1.5 mm²
Protection Degree	IP67
Mating Cycles	>50 times
Upper Temperature	+85 °C
Lower Temperature	-25 °C
Rated Voltage	250
Rated Impuls Voltage	4000 V
Pollution Degree	3
Overvoltage Categorie	III
Material Group	III
Rated Current (40°)	cUR 5 A
Max. Contact Resistance	8 mΩ
Material Of Contact	CuZn (Brass)
Plating	CuSnZn (Optalloy), Sn (Tin)
Material Of Insert	PBT/PA
Material Of Housing	PBT/PA
Fiche produit	Télécharger la fiche produit

Article Number	09 0441 090 04
Connector Diameter	21 mm
Number Of Contacts	4 contacts
Connector Locking System	Screw (M18)
Termination	Dip solder
Wire Section	1.5 mm²
Protection Degree	IP67
Mating Cycles	>50 times
Upper Temperature	+85 °C
Lower Temperature	-25 °C
Rated Voltage	250
Rated Impuls Voltage	4000 V
Pollution Degree	3
Overvoltage Categorie	III
Material Group	III
Rated Current (40°)	cUR 5 A
Max. Contact Resistance	8 mΩ
Material Of Contact	CuZn (Brass)
Plating	CuSnZn (Optalloy), Sn (Tin)
Material Of Insert	PBT/PA
Material Of Housing	PBT/PA
Fiche produit	Télécharger la fiche produit

Les propriétés diffèrent selon les variantes et sous-variantes
