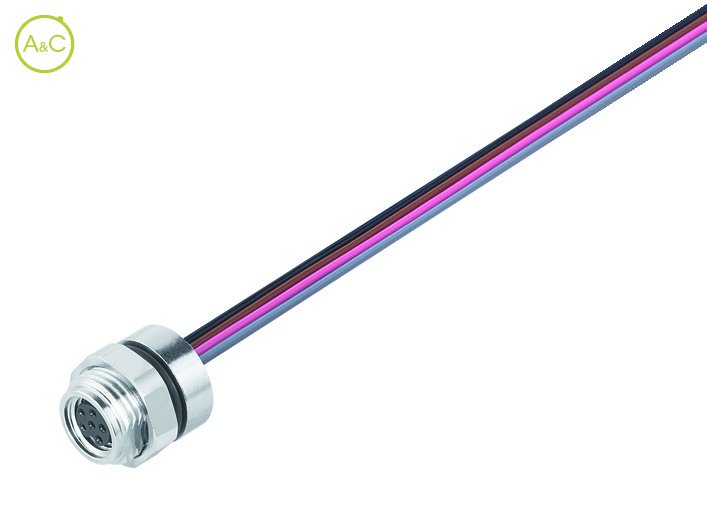

Female panel mount connector

Avez-vous des questions sur ce produit?

Plus d’infos sur cette marque:

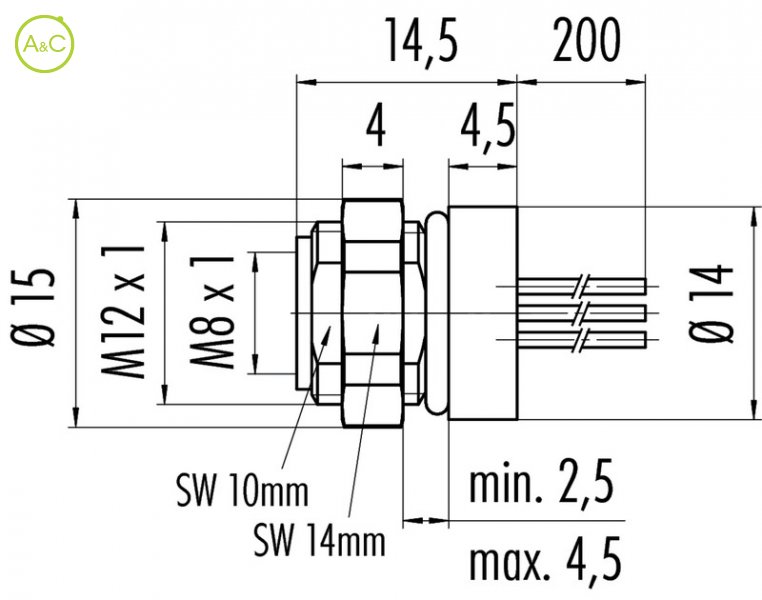

Article Number	09 3412 86 03
Connector Diameter	15 mm
Number Of Contacts	3 contacts
Connector Locking System	Screw (M8)
Termination	Single wires 0,25 mm
Wire Section	0.25 mm²
Protection Degree	IP67
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	60
Rated Impuls Voltage	800 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	4 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	CuZn (Brass nickel plated)
Fiche produit	Télécharger la fiche produit

Article Number	09 3390 86 04
Connector Diameter	15 mm
Number Of Contacts	4 contacts
Connector Locking System	Screw (M8)
Termination	Single wires 0,25 mm
Wire Section	0.25 mm²
Protection Degree	IP67
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	30
Rated Impuls Voltage	800 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	4 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	CuZn (Brass nickel plated)
Fiche produit	Télécharger la fiche produit

Article Number	09 3462 86 06
Connector Diameter	15 mm
Number Of Contacts	6 contacts
Connector Locking System	Screw (M8)
Termination	Single wires 0,14 mm
Wire Section	0.14 mm²
Protection Degree	IP67
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	30
Rated Impuls Voltage	800 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	1.5 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	CuZn (Brass nickel plated)
Fiche produit	Télécharger la fiche produit

Article Number	09 3486 86 08
Connector Diameter	15 mm
Number Of Contacts	8 contacts
Connector Locking System	Screw (M8)
Termination	Single wires 0,14 mm
Wire Section	0.14 mm²
Protection Degree	IP67
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	30
Rated Impuls Voltage	800 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	1.5 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	CuZn (Brass nickel plated)
Fiche produit	Télécharger la fiche produit

Les propriétés diffèrent selon les variantes et sous-variantes
