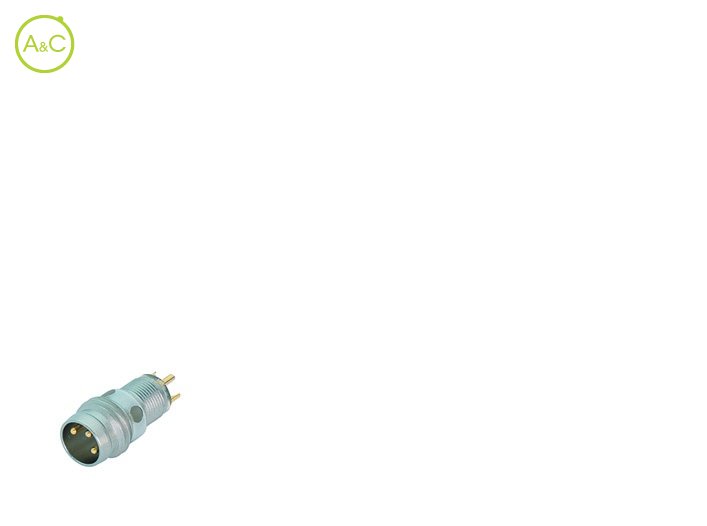

Male receptacle
Avez-vous des questions sur ce produit?
Plus d’infos sur cette marque:
Binder
Binder
Number Of Poles
- 3
- 3 + LED (red)
- 3 + LED (yellow)
- 4
- 4 + LED (red)
- 4 + LED (yellow)

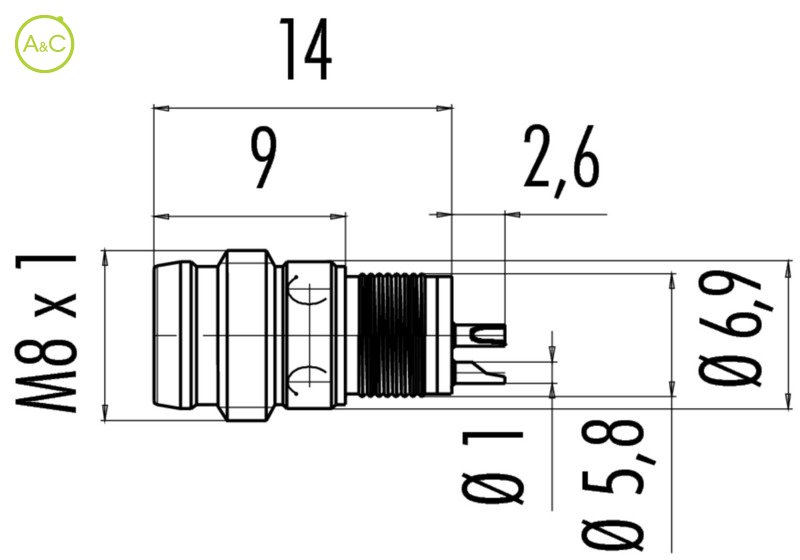

| Article Number | 09 3413 00 03 |
| Connector Diameter | 6.9 mm |
| Number Of Contacts | 3 contacts |
| Connector Locking System | Screw, snap-in |
| Termination | Solder |
| Wire Section | 0.25 mm² |
| Protection Degree | Snap-in IP65, Screw IP67 |
| Mating Cycles | Snap-in >50, Screw >100 times |
| Upper Temperature | Snap-in +70, Screw +85 °C |
| Lower Temperature | -40 °C |
| Rated Voltage | 60 |
| Rated Impuls Voltage | 800 V |
| Pollution Degree | 3 |
| Overvoltage Categorie | II |
| Material Group | II |
| Rated Current (40°) | 4 A |
| Max. Contact Resistance | 3 mΩ |
| Material Of Contact | CuZn (Brass) |
| Plating | Au (Gold) |
| Material Of Insert | PA (UL 94 HB) |
| Material Of Housing | CuZn (Brass nickel plated) |
| Fiche produit | Télécharger la fiche produit |
Les propriétés diffèrent selon les variantes et sous-variantes
