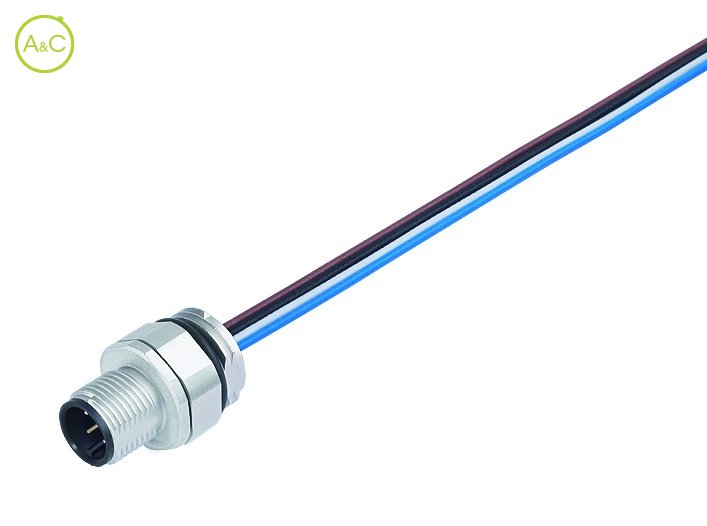

Male socket

Avez-vous des questions sur ce produit?

Plus d’infos sur cette marque:

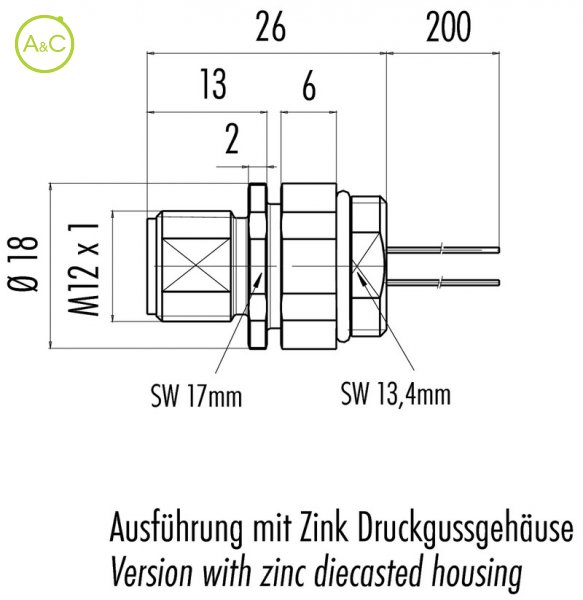

Article Number	09 4431 22 04	09 4431 722 04
Connector Diameter	18 mm	18 mm
Number Of Contacts	4 contacts	4 contacts
Connector Locking System	Screw (M12-B)	Screw (M12-B)
Termination	Single wires	Single wires
Wire Section	0.25 mm²	0.25 mm²
Protection Degree	IP68	IP68
Mating Cycles	>100 times	>100 times
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-40 °C	-40 °C
Rated Voltage	250	250
Rated Impuls Voltage	2500 V	2500 V
Pollution Degree	3	3
Overvoltage Categorie	II	II
Material Group	II	II
Rated Current (40°)	4 A	4 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PA	PA
Material Of Housing	Zinc diecasting nickel plated, stainless steel 1.4404	Zinc diecasting nickel plated, stainless steel 1.4404
Fiche produit	Télécharger la fiche produit	Télécharger la fiche produit

Article Number	09 4441 22 05	09 4441 722 05
Connector Diameter	18 mm	18 mm
Number Of Contacts	5 contacts	5 contacts
Connector Locking System	Screw (M12-B)	Screw (M12-B)
Termination	Single wires	Single wires
Wire Section	0.25 mm²	0.25 mm²
Protection Degree	IP68	IP68
Mating Cycles	>100 times	>100 times
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-40 °C	-40 °C
Rated Voltage	125	125
Rated Impuls Voltage	1500 V	1500 V
Pollution Degree	3	3
Overvoltage Categorie	II	II
Material Group	II	II
Rated Current (40°)	4 A	4 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PA	PA
Material Of Housing	Zinc diecasting nickel plated, stainless steel 1.4404	Zinc diecasting nickel plated, stainless steel 1.4404
Fiche produit	Télécharger la fiche produit	Télécharger la fiche produit

Les propriétés diffèrent selon les variantes et sous-variantes
