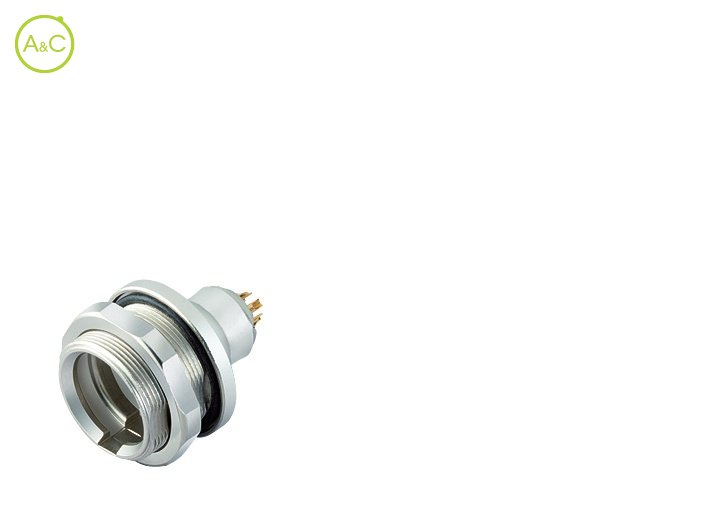

Female panel mount connector

Avez-vous des questions sur ce produit?

Plus d’infos sur cette marque:

Article Number	09 4908 081 03
Connector Diameter	17.5 mm
Number Of Contacts	3 contacts
Connector Locking System	Push-Pull
Termination	Solder
Wire Section	0.25 mm²
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	2
Overvoltage Categorie	I
Material Group	II
Rated Current (40°)	4 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PBT/PA
Material Of Housing	CuZn (Brass nickel plated)
Fiche produit	Télécharger la fiche produit

Article Number	09 4912 081 04
Connector Diameter	17.5 mm
Number Of Contacts	4 contacts
Connector Locking System	Push-Pull
Termination	Solder
Wire Section	0.25 mm²
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	2
Overvoltage Categorie	I
Material Group	II
Rated Current (40°)	3 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PBT/PA
Material Of Housing	CuZn (Brass nickel plated)
Fiche produit	Télécharger la fiche produit

Article Number	09 4916 081 05
Connector Diameter	17.5 mm
Number Of Contacts	5 contacts
Connector Locking System	Push-Pull
Termination	Solder
Wire Section	0.25 mm²
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	2
Overvoltage Categorie	I
Material Group	II
Rated Current (40°)	3 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PBT/PA
Material Of Housing	CuZn (Brass nickel plated)
Fiche produit	Télécharger la fiche produit

Article Number	09 4928 081 07
Connector Diameter	17.5 mm
Number Of Contacts	7 contacts
Connector Locking System	Push-Pull
Termination	Solder
Wire Section	0.14 mm²
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	2
Overvoltage Categorie	I
Material Group	II
Rated Current (40°)	1 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PBT/PA
Material Of Housing	CuZn (Brass nickel plated)
Fiche produit	Télécharger la fiche produit

Article Number	09 4932 081 08
Connector Diameter	17.5 mm
Number Of Contacts	8 contacts
Connector Locking System	Push-Pull
Termination	Solder
Wire Section	0.14 mm²
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	2
Overvoltage Categorie	I
Material Group	II
Rated Current (40°)	1 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PBT/PA
Material Of Housing	CuZn (Brass nickel plated)
Fiche produit	Télécharger la fiche produit

Les propriétés diffèrent selon les variantes et sous-variantes
