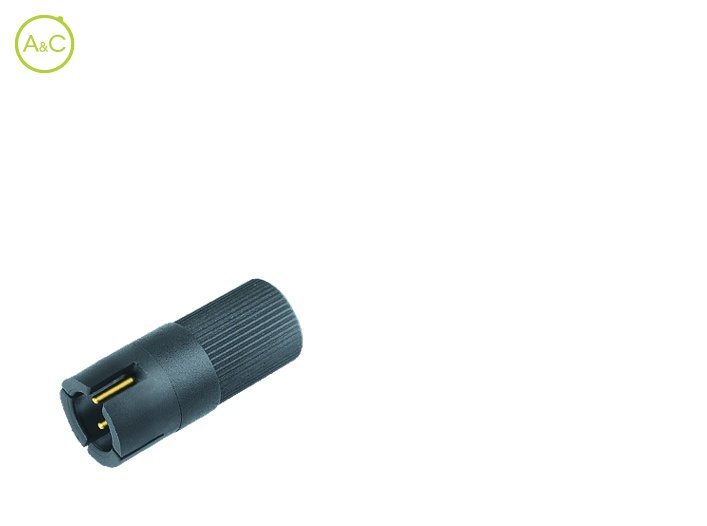

Male cable connector

Avez-vous des questions sur ce produit?

Plus d’infos sur cette marque:

Article Number	09 9747 00 03
Connector Diameter	8 mm
Number Of Contacts	3 contacts
Connector Locking System	Snap-in
Termination	Solder
Wire Section	0.25 mm²
Protection Degree	IP40
Mating Cycles	>100 times
Upper Temperature	+70 °C
Lower Temperature	-25 °C
Rated Voltage	60
Rated Impuls Voltage	800 V
Pollution Degree	1
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	3 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	PA
Cable Outlet	3.6 mm
Fiche produit	Télécharger la fiche produit

Article Number	09 9767 00 04
Connector Diameter	8 mm
Number Of Contacts	4 contacts
Connector Locking System	Snap-in
Termination	Solder
Wire Section	0.25 mm²
Protection Degree	IP40
Mating Cycles	>100 times
Upper Temperature	+70 °C
Lower Temperature	-25 °C
Rated Voltage	60
Rated Impuls Voltage	800 V
Pollution Degree	1
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	3 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	PA
Cable Outlet	3.6 mm
Fiche produit	Télécharger la fiche produit

Article Number	09 9789 00 05
Connector Diameter	8 mm
Number Of Contacts	5 contacts
Connector Locking System	Snap-in
Termination	Solder
Wire Section	0.25 mm²
Protection Degree	IP40
Mating Cycles	>100 times
Upper Temperature	+70 °C
Lower Temperature	-25 °C
Rated Voltage	60
Rated Impuls Voltage	800 V
Pollution Degree	1
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	3 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	PA
Cable Outlet	3.6 mm
Fiche produit	Télécharger la fiche produit

Les propriétés diffèrent selon les variantes et sous-variantes
