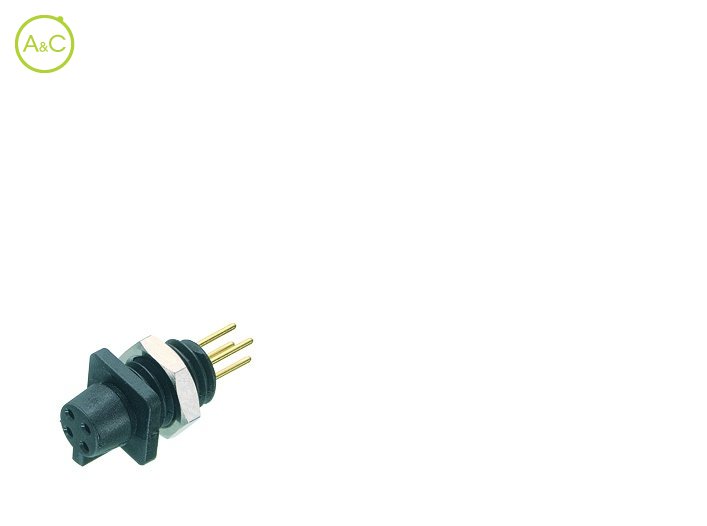

Female panel mount connector

Avez-vous des questions sur ce produit?

Plus d’infos sur cette marque:

Article Number	09 9750 20 03
Connector Diameter	8 mm
Number Of Contacts	3 contacts
Connector Locking System	Snap-in
Termination	Dip solder
Wire Section	0.25 mm²
Protection Degree	IP40
Mating Cycles	>100 times
Upper Temperature	+70 °C
Lower Temperature	-25 °C
Rated Voltage	60
Rated Impuls Voltage	800 V
Pollution Degree	1
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	3 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	PA
Fiche produit	Télécharger la fiche produit

Article Number	09 9766 20 04
Connector Diameter	8 mm
Number Of Contacts	4 contacts
Connector Locking System	Snap-in
Termination	Dip solder
Wire Section	0.25 mm²
Protection Degree	IP40
Mating Cycles	>100 times
Upper Temperature	+70 °C
Lower Temperature	-25 °C
Rated Voltage	60
Rated Impuls Voltage	800 V
Pollution Degree	1
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	3 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	PA
Fiche produit	Télécharger la fiche produit

Article Number	09 9792 20 05
Connector Diameter	8 mm
Number Of Contacts	5 contacts
Connector Locking System	Snap-in
Termination	Dip solder
Wire Section	0.25 mm²
Protection Degree	IP40
Mating Cycles	>100 times
Upper Temperature	+70 °C
Lower Temperature	-25 °C
Rated Voltage	60
Rated Impuls Voltage	800 V
Pollution Degree	1
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	3 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	PA
Fiche produit	Télécharger la fiche produit

Les propriétés diffèrent selon les variantes et sous-variantes
