Receptacle for JMD connector

JMD CONNECTOR

Avez-vous des questions sur ce produit?

Contactez notre spécialiste du connecteur

Envoyez-moi une offre personnalisée

Télécharger la fiche produit

Plus d’infos sur cette marque:

JST

Number Of Poles

Article Number	20R-JMDSS-G-1-TF(S)
Number Of Contacts	20
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch Board-to-Board Connector
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	30R-JMDSS-G-1-TF(S)
Number Of Contacts	30
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch Board-to-Board Connector
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	40R-JMDSS-G-1-TF(S)
Number Of Contacts	40
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch Board-to-Board Connector
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	50R-JMDSS-G-1-TF(S)
Number Of Contacts	50
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch Board-to-Board Connector
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	60R-JMDSS-G-1-TF(S)
Number Of Contacts	60
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch Board-to-Board Connector
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	70R-JMDSS-G-1-TF(S)
Number Of Contacts	70
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch Board-to-Board Connector
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	80R-JMDSS-G-1-TF(S)
Number Of Contacts	80
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch Board-to-Board Connector
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	100R-JMDSS-G-1-TF(S)
Number Of Contacts	100
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch Board-to-Board Connector
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Les propriétés diffèrent selon les variantes et sous-variantes

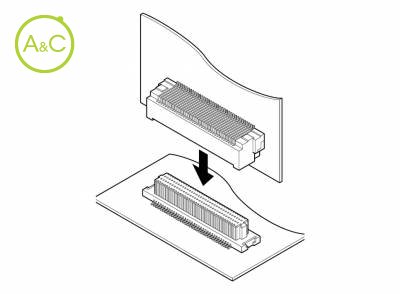

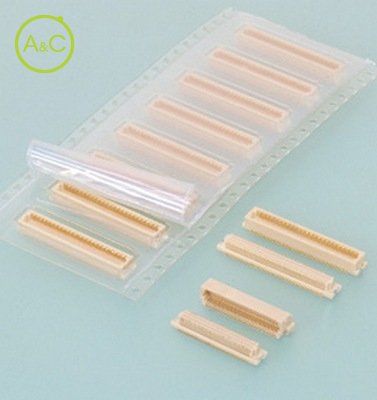

Box-shaped plug housing has guide ribs on both ends, which prevents distortion. No. of circuits available are from 20 to 100, every 10 circuits. Smooth connection Thanks to the cantilever type contacts, mating is very smooth Distortion preventive construction Box-shaped plug housing has guide ribs on both ends, which prevents distortion. Wide range of circuits No.of circuits available are from 20 to 100, every 10 circuiits. Embossed taping for automatic mounting This connector is supplied in embossed tape packaging, for mounting by automatic placement machines. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
