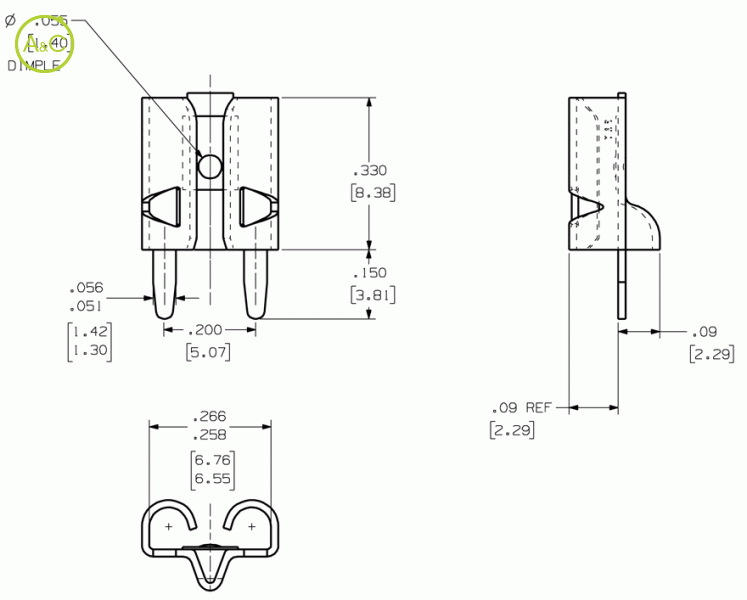

0.205" (5.21mm) and 0.250" (6.35mm) Tab Receptacles

Mating type Vertical
With dimple 1,40 mm

1022

1022

1022

Avez-vous des questions sur ce produit?

Contactez notre spécialiste du connecteur

Envoyez-moi une offre personnalisée

Plus d’infos sur cette marque:

Packaging

Loose
Reeled

Article Number	1022	1037	1123
Remark*	With brass Tab	With brass Tab	With brass Tab
Extra Description	With dimple 1,40 mm	With dimple 1,40 mm	With dimple 1,40 mm
Mating Terminal Size	0.250" x 0.032" (6.35mm x 0.81mm) Tab* 0.205" x 0.032" (5.21mm x 0.81mm) Tab*	0.250" x 0.032" (6.35mm x 0.81mm) Tin/Brass - Tab - (Low Insertion Force) 0.205" x 0.032" (5.21mm x 0.81mm) Tin/Brass - Tab - (Low Insertion Force)	0.250" x 0.025" (6.35mm x 0.63mm) Tin/Non-Brass - Relays or Fuses - Dual/Multiple Mating 0.205" x 0.025" (5.21mm x 0.64mm) Tin/Non-Brass - Relays or Fuses - Dual/Multiple Mating
Material Thickness / Type	0.016" (0.41mm) C26000 Brass	0.016" (0.41mm) C26000 Brass	0.016" (0.41mm) C26000 Brass
Standard Finish	100% Tin over Copper	100% Tin over Copper	100% Tin over Copper
Current Rating	20 Amperes*	20 Amperes*	20 Amperes*
Applicator System	Loose: ZPT81-A Reeled: Model 9700, 9700 XY	Loose: ZPT81-A Reeled: Model 9700, 9700 XY	Loose: ZPT81-A Reeled: Model 9700, 9700 XY
Mounting Type	Outward or Inward Splay	Outward or Inward Splay	Outward or Inward Splay
Mounting Hole Diameter	0.058" ±0.003" (1.473mm ±0.076mm) on 0.200" ±0.003" (5.08mm ±0.076mm) centers	0.058" ±0.003" (1.473mm ±0.076mm) on 0.200" ±0.003" (5.08mm ±0.076mm) centers	0.058" ±0.003" (1.473mm ±0.076mm) on 0.200" ±0.003" (5.08mm ±0.076mm) centers
Resistance Rating	10mOhm Max	10mOhm Max	10mOhm Max
Mating Entry	Top	Top	Top
Temperature Rating	-65° to 85°C	-65° to 85°C	-65° to 85°C
Pieces Per Reel (loose Part No.)	NA	NA	NA
Pieces Per Reel (reeled Part No.)	/	/	/
Fiche produit	Télécharger la fiche produit	Télécharger la fiche produit	Télécharger la fiche produit

Article Number	6022	6037	6123
Remark*	With brass Tab	With brass Tab	With brass Tab
Extra Description	With dimple 1,40 mm	With dimple 1,40 mm	With dimple 1,40 mm
Mating Terminal Size	0.250" x 0.032" (6.35mm x 0.81mm) Tab* 0.205" x 0.032" (5.21mm x 0.81mm) Tab*	0.250" x 0.032" (6.35mm x 0.81mm) Tin/Brass - Tab - (Low Insertion Force) 0.205" x 0.032" (5.21mm x 0.81mm) Tin/Brass - Tab - (Low Insertion Force)	0.250" x 0.025" (6.35mm x 0.63mm) Tin/Non-Brass - Relays or Fuses - Dual/Multiple Mating 0.205" x 0.025" (5.21mm x 0.64mm) Tin/Non-Brass - Relays or Fuses - Dual/Multiple Mating
Material Thickness / Type	0.016" (0.41mm) C26000 Brass	0.016" (0.41mm) C26000 Brass	0.016" (0.41mm) C26000 Brass
Standard Finish	100% Tin over Copper	100% Tin over Copper	100% Tin over Copper
Current Rating	20 Amperes*	20 Amperes*	20 Amperes*
Applicator System	Loose: ZPT81-A Reeled: Model 9700, 9700 XY	Loose: ZPT81-A Reeled: Model 9700, 9700 XY	Loose: ZPT81-A Reeled: Model 9700, 9700 XY
Mounting Type	Outward or Inward Splay	Outward or Inward Splay	Outward or Inward Splay
Mounting Hole Diameter	0.058" ±0.003" (1.473mm ±0.076mm) on 0.200" ±0.003" (5.08mm ±0.076mm) centers	0.058" ±0.003" (1.473mm ±0.076mm) on 0.200" ±0.003" (5.08mm ±0.076mm) centers	0.058" ±0.003" (1.473mm ±0.076mm) on 0.200" ±0.003" (5.08mm ±0.076mm) centers
Resistance Rating	10mOhm Max	10mOhm Max	10mOhm Max
Mating Entry	Top	Top	Top
Temperature Rating	-65° to 85°C	-65° to 85°C	-65° to 85°C
Pieces Per Reel (loose Part No.)	/	/	/
Pieces Per Reel (reeled Part No.)	5000	5000	5000
Fiche produit	Télécharger la fiche produit	Télécharger la fiche produit	Télécharger la fiche produit

Les propriétés diffèrent selon les variantes et sous-variantes
