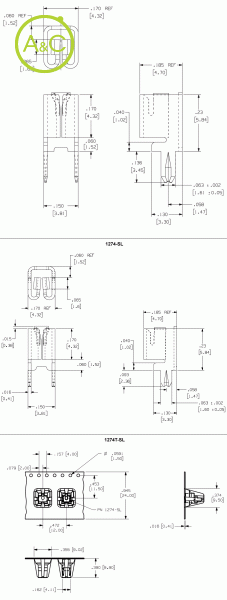

Universal Tab Receptacles for 0.025" (0.64mm) and 0.032" (0.81mm) Thick Terminals
Avez-vous des questions sur ce produit?
Plus d’infos sur cette marque:
Zierick
Zierick
Packaging
- Loose
- Reeled
- Taped
| Article Number | 1092 | 1274 | 1274-SL |
| Extra Description | Mounting type is Split leg Inward Splay | Mounting type is Split leg Inward Splay | Mounting type is Split leg Inward Splay |
| Mating Terminal Size | 0.025" (0.64mm) and 0.032" (0.81mm) | 0.020" (0.51mm) and 0.032" (0.81 mm) | 0.020" (0.51mm) and 0.032" (0.81 mm) |
| Material Thickness / Type | 0.016" (0.41mm) C26000 Brass | 0.016" (0.41mm) C26000 Brass | 0.016" (0.41mm) C26000 Brass |
| Standard Finish | 100% Tin over Copper | 100% Tin over Copper | 100% Tin over Copper |
| Current Rating | 20 Amperes | 20 Amperes | 20 Amperes |
| Applicator System | Loose: ZPT81-1092 Reeled: Model 9700, 9700 XY | Loose: ZPT81-1092 Reeled: Model 9700, 9700 XY | Loose: ZPT81-1092 Reeled: Model 9700, 9700 XY |
| Mounting Type | Split Leg Inward Splay | Split Leg Inward Splay | Split Leg Inward Splay |
| Resistance Rating | 10mOhm Max | 10mOhm Max | 10mOhm Max |
| Mating Entry | Top and Horizontal | Top and Horizontal | Top and Horizontal |
| Temperature Rating | -65° to 85°C | -65° to 85°C | -65° to 85°C |
| Pieces Per Reel (loose Part No.) | NA | NA | NA |
| Pieces Per Reel (reeled Part No.) | / | / | / |
| Pieces Per Reel (taped Part No.) | / | / | / |
| Fiche produit | Télécharger la fiche produit | Télécharger la fiche produit | Télécharger la fiche produit |
Les propriétés diffèrent selon les variantes et sous-variantes
