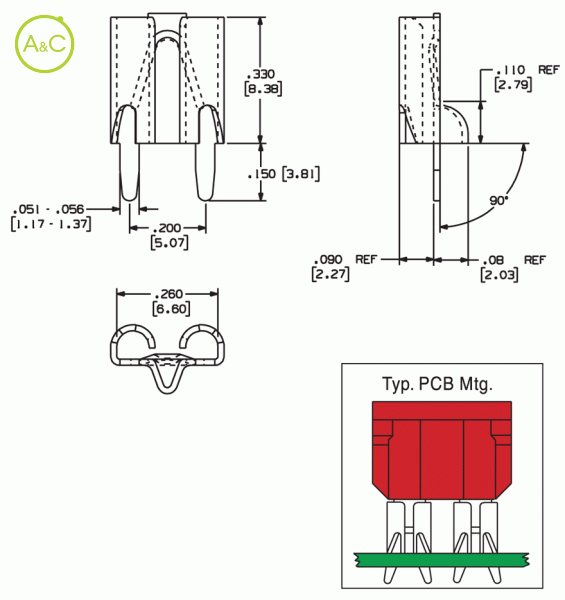

0.205" (5.21mm) and 0.250" (6.35mm) Tab Receptacles
Avez-vous des questions sur ce produit?
Plus d’infos sur cette marque:
Zierick
Packaging
- Loose
- Reeled
- reeled
Article Number | 1154 | 1225 |
Remark* | With steel test tab | With steel test tab |
Extra Description | Without dimple | Without dimple |
Mating Terminal Size | 0.250" x 0.025" (6.35mm x 0.64mm) Tab or Fuse | 0.250" x 0.032" (6.35mm x 0.81mm) Tab |
Material Thickness / Type | 0.016" (0.41mm) C26000 Brass | 0.016" (0.41mm) C26000 Brass |
Standard Finish | 100% Tin over Copper | 100% Tin over Copper |
Current Rating | 20 Amperes (with Brass Tab) | 20 Amperes (with Brass Tab) |
Applicator System | Loose: ZPT81-A Reeled: Model 9700, 9700 XY | Loose: ZPT81-A Reeled: Model 9700, 9700 XY |
Mounting Type | Outward or Inward Splay | Outward or Inward Splay |
Mounting Hole Diameter | 0.058" ±0.003" (1.473mm ±0.076mm) on 0.200" ±0.003" (5.08mm ±0.076mm) centers | 0.058" ±0.003" (1.473mm ±0.076mm) on 0.200" ±0.003" (5.08mm ±0.076mm) centers |
Resistance Rating | 10mOhm Max | 10mOhm Max |
Mating Entry | Top | Top |
Temperature Rating | -65° to 85°C | -65° to 85°C |
Insertion Force-max. | 5.0 lbs. (22.24N)* | 10.0 lbs. (44.48N)* |
Withdrawal Force-max. | 1.5 lbs. (6.73N)* | 1.5 lbs. (6.73N)* |
Pieces Per Reel (loose Part No.) | NA | NA |
Pieces Per Reel (reeled Part No.) | / | / |
Fiche produit | Télécharger la fiche produit | Télécharger la fiche produit |
Les propriétés diffèrent selon les variantes et sous-variantes
