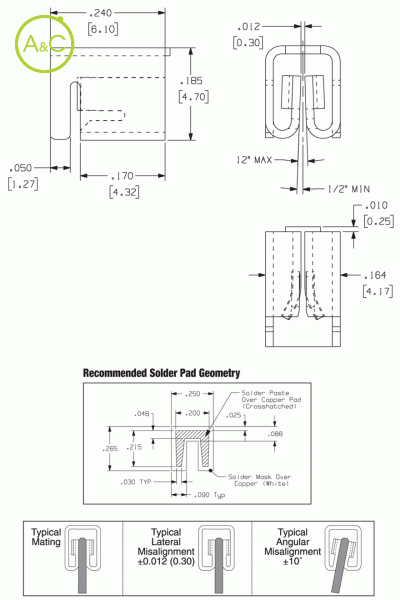

SMT Bottom or Horizontal Entry Universal Tab Receptacles

1238

1238

1238

Avez-vous des questions sur ce produit?

Contactez notre spécialiste du connecteur

Envoyez-moi une offre personnalisée

Plus d’infos sur cette marque:

Packaging

Loose
Reeled
Small reeled
Taped

Article Number	1238
Mating Terminal Size	0.025" (0.64mm) to 0.032" (0.81mm) thick
Material Thickness / Type	0.016" (0.41mm) C26000 Brass
Standard Finish	100% Tin over Copper
Current Rating	25 Amperes
Feeder System	Surf-Shooter SMT ™ Continuous Strip Feeder P/N 6238 Standard 16mm Tape Feeder
Pieces Per Reel (loose Part No.)	NA
Pieces Per Reel (reeled Part No.)	/
Pieces Per Reel (taped Part No.)	/
Pieces Per Reel (small Reel Part No.)	/
Fiche produit	Télécharger la fiche produit

Article Number	6238
Mating Terminal Size	0.025" (0.64mm) to 0.032" (0.81mm) thick
Material Thickness / Type	0.016" (0.41mm) C26000 Brass
Standard Finish	100% Tin over Copper
Current Rating	25 Amperes
Feeder System	Surf-Shooter SMT ™ Continuous Strip Feeder P/N 6238 Standard 16mm Tape Feeder
Pieces Per Reel (loose Part No.)	/
Pieces Per Reel (reeled Part No.)	900
Pieces Per Reel (taped Part No.)	/
Pieces Per Reel (small Reel Part No.)	/
Fiche produit	Télécharger la fiche produit

Article Number	1238T-SR	1238T-KT-SR
Mating Terminal Size	0.025" (0.64mm) to 0.032" (0.81mm) thick	0.025" (0.64mm) to 0.032" (0.81mm) thick
Material Thickness / Type	0.016" (0.41mm) C26000 Brass	0.016" (0.41mm) C26000 Brass
Standard Finish	100% Tin over Copper	100% Tin over Copper
Current Rating	25 Amperes	25 Amperes
Feeder System	Surf-Shooter SMT ™ Continuous Strip Feeder P/N 6238 Standard 16mm Tape Feeder	Surf-Shooter SMT ™ Continuous Strip Feeder P/N 6238 Standard 16mm Tape Feeder
Pieces Per Reel (loose Part No.)	/	/
Pieces Per Reel (reeled Part No.)	/	/
Pieces Per Reel (taped Part No.)	/	/
Pieces Per Reel (small Reel Part No.)	100	100
Fiche produit	Télécharger la fiche produit	Télécharger la fiche produit

Article Number	1238T	1238-BMT	1238T-KT
Mating Terminal Size	0.025" (0.64mm) to 0.032" (0.81mm) thick	0.025" (0.64mm) to 0.032" (0.81mm) thick	0.025" (0.64mm) to 0.032" (0.81mm) thick
Material Thickness / Type	0.016" (0.41mm) C26000 Brass	0.016" (0.41mm) C26000 Brass	0.016" (0.41mm) C26000 Brass
Standard Finish	100% Tin over Copper	100% Tin over Copper	100% Tin over Copper
Current Rating	25 Amperes	25 Amperes	25 Amperes
Feeder System	Surf-Shooter SMT ™ Continuous Strip Feeder P/N 6238 Standard 16mm Tape Feeder	Surf-Shooter SMT ™ Continuous Strip Feeder P/N 6238 Standard 16mm Tape Feeder	Surf-Shooter SMT ™ Continuous Strip Feeder P/N 6238 Standard 16mm Tape Feeder
Pieces Per Reel (loose Part No.)	/	/	/
Pieces Per Reel (reeled Part No.)	/	/	/
Pieces Per Reel (taped Part No.)	900	1500	900
Pieces Per Reel (small Reel Part No.)	/	/	/
Fiche produit	Télécharger la fiche produit	Télécharger la fiche produit	Télécharger la fiche produit

Les propriétés diffèrent selon les variantes et sous-variantes
