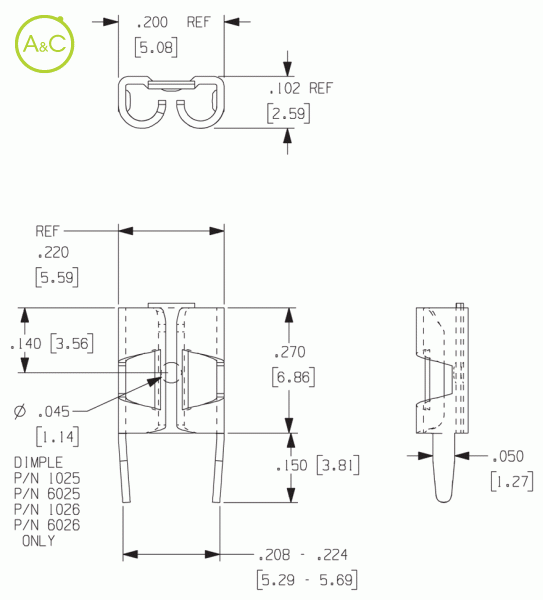

0.187" (4.75mm) Tab Receptacles
Avez-vous des questions sur ce produit?
Plus d’infos sur cette marque:
Zierick
Zierick
Packaging
- Loose
- Reeled
| Article Number | 1241 | 1026 | 1025 |
| Mating Terminal Size | 0.187" x 0.015" (4.75mm x 0.38mm) Tab | 0.187" x 0.020" (4.75mm x 0.51mm) Tab | 0.187" x 0.032" (4.75mm x 0.81mm) Tab |
| Material Thickness / Type | 0.016" (0.41mm) C26000 Brass | 0.016" (0.41mm) C26000 Brass | 0.016" (0.41mm) C26000 Brass |
| Standard Finish | 100% Tin over Copper | 100% Tin over Copper | 100% Tin over Copper |
| Current Rating | 15 Amperes | 15 Amperes | 15 Amperes |
| Applicator System | Loose: ZPT81-A Reeled: Model 9700, 9700 XY | Loose: ZPT81-A Reeled: Model 9700, 9700 XY | Loose: ZPT81-A Reeled: Model 9700, 9700 XY |
| Mounting Type | Outward or Inward Splay | Outward or Inward Splay | Outward or Inward Splay |
| Mounting Hole Diameter | 2 holes 0.058" ±0.003" (1.473mm ±0.076mm) on 0.200" ±0.003" (5.08mm ±0.076mm) centers | 2 holes 0.058" ±0.003" (1.473mm ±0.076mm) on 0.200" ±0.003" (5.08mm ±0.076mm) centers | 2 holes 0.058" ±0.003" (1.473mm ±0.076mm) on 0.200" ±0.003" (5.08mm ±0.076mm) centers |
| Resistance Rating | 10mOhm Max | 10mOhm Max | 10mOhm Max |
| Temperature Rating | -65° to 85°C | -65° to 85°C | -65° to 85°C |
| Pieces Per Reel (loose Part No.) | NA | NA | NA |
| Pieces Per Reel (reeled Part No.) | / | / | / |
| Fiche produit | Télécharger la fiche produit | Télécharger la fiche produit | Télécharger la fiche produit |
Les propriétés diffèrent selon les variantes et sous-variantes
