SMT Insulation Displacement Connectors
Avez-vous des questions sur ce produit?
Plus d’infos sur cette marque:
Zierick
Zierick
Packaging
- Loose
- Small reeled
- Taped
| Article Number | 1245 | 1296 |
| Extra Description | AWG 18-26 | AWG 18-26 |

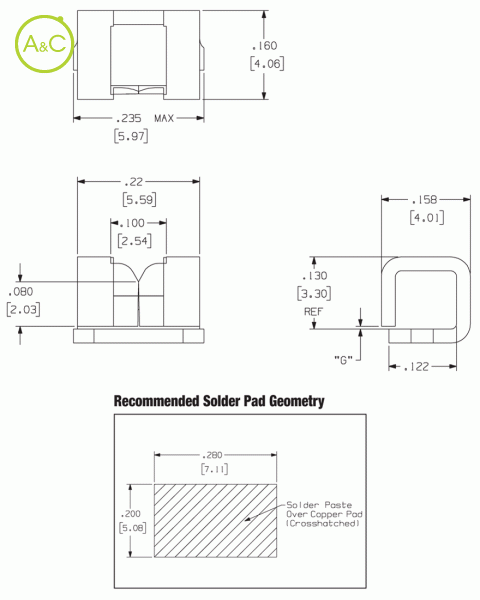

| Gap Dimension “g” | 0.005" (0.13mm) | 0.005 - 0.013" (0.13 - 0.33mm) |
| Material Thickness / Type | 0.025" (0.64mm) C26000 Brass | 0.025" (0.64mm) C26000 Brass |
| Standard Finish | 100% Tin over Copper | 100% Tin over Copper |
| Current Rating Ul | AWG 26 solid & stranded 4.0 amperes AWG 24 solid & stranded 5.5 amperes AWG 22 solid & stranded 10 amperes AWG 20 solid & stranded 12 amperes AWG 18 stranded 13 amperes AWG 18 solid 13 amperes | AWG 26 solid & stranded 4.0 amperes AWG 24 solid & stranded 5.5 amperes AWG 22 solid & stranded 10 amperes AWG 20 solid & stranded 12 amperes AWG 18 stranded 13 amperes AWG 18 solid 13 amperes |
| Current Rating C-ul | AWG 26 solid & stranded 4.0 amperes AWG 24 solid & stranded 5.5 amperes AWG 22 solid & stranded 8 amperes AWG 20 solid & stranded 10 amperes AWG 18 stranded 11 amperes AWG 18 solid 12 amperes | AWG 26 solid & stranded 4.0 amperes AWG 24 solid & stranded 5.5 amperes AWG 22 solid & stranded 8 amperes AWG 20 solid & stranded 10 amperes AWG 18 stranded 11 amperes AWG 18 solid 12 amperes |
| Feeder System | Standard 12mm Tape Feeder | Standard 12mm Tape Feeder |
| Ul File Number | E361770 | E361770 |
| Wire Gauge Range | #18-26 AWG | #18-26 AWG |
| Wire Insertion Tool | WTP-4ALL: Prototype Tool WTPPS-1208-1: Pnuematic Production Tool | WTP-4ALL: Prototype Tool WTPPS-1208-1: Pnuematic Production Tool |
| Pieces Per Reel (loose Part No.) | NA | NA |
| Pieces Per Reel (taped Part No.) | / | / |
| Pieces Per Reel (small Reel Part No.) | / | / |
| Fiche produit | Télécharger la fiche produit | Télécharger la fiche produit |
Les propriétés diffèrent selon les variantes et sous-variantes
