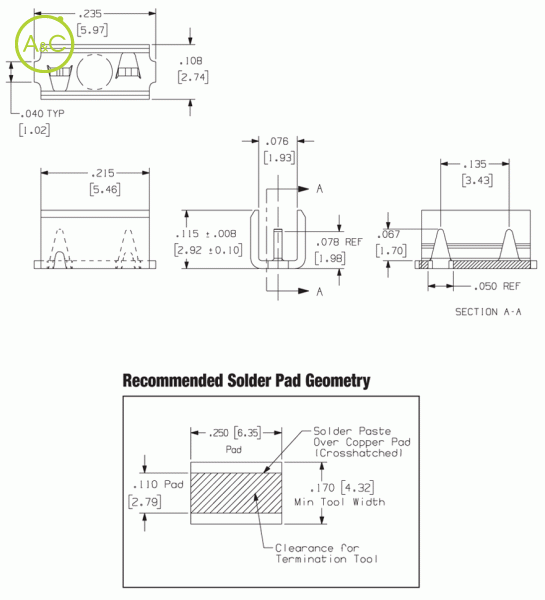

SMT Insulation Piercing Connectors

AWG 16-20

1286

1286

1286

Avez-vous des questions sur ce produit?

Contactez notre spécialiste du connecteur

Envoyez-moi une offre personnalisée

Plus d’infos sur cette marque:

Packaging

Loose
Small reeled
Taped

Article Number	1286
Extra Description	AWG 16-20
Material Thickness / Type	0.016" (0.41mm) C26000 Brass
Standard Finish	Pre-finished 100% Matte Tin over Copper. Edges will be bare.
Current Rating Ul	13 amperes
Current Rating C-ul	13 amperes
Feeder System	Standard 12mm Tape Feeder for PN 1286T
Ul File Number	E361770
Crimping System	Mini Press (for high volume applications) Versa-Crimp (for low volume applications) WTC-1286-1 (for low volume and/or field terminations)
Wire Sizes + Insulation Outside Diameter	16 AWG: 0.077" 18 AWG: 0.068"/0.078"/0.080" 20 AWG: 0.068"/0.073"/0.082"
Pieces Per Reel (loose Part No.)	NA
Pieces Per Reel (taped Part No.)	/
Pieces Per Reel (small Reel Part No.)	/
Fiche produit	Télécharger la fiche produit

Article Number	1286T-SR
Extra Description	AWG 16-20
Material Thickness / Type	0.016" (0.41mm) C26000 Brass
Standard Finish	Pre-finished 100% Matte Tin over Copper. Edges will be bare.
Current Rating Ul	13 amperes
Current Rating C-ul	13 amperes
Feeder System	Standard 12mm Tape Feeder for PN 1286T
Ul File Number	E361770
Crimping System	Mini Press (for high volume applications) Versa-Crimp (for low volume applications) WTC-1286-1 (for low volume and/or field terminations)
Wire Sizes + Insulation Outside Diameter	16 AWG: 0.077" 18 AWG: 0.068"/0.078"/0.080" 20 AWG: 0.068"/0.073"/0.082"
Pieces Per Reel (loose Part No.)	/
Pieces Per Reel (taped Part No.)	/
Pieces Per Reel (small Reel Part No.)	100
Fiche produit	Télécharger la fiche produit

Article Number	1286T
Extra Description	AWG 16-20
Material Thickness / Type	0.016" (0.41mm) C26000 Brass
Standard Finish	Pre-finished 100% Matte Tin over Copper. Edges will be bare.
Current Rating Ul	13 amperes
Current Rating C-ul	13 amperes
Feeder System	Standard 12mm Tape Feeder for PN 1286T
Ul File Number	E361770
Crimping System	Mini Press (for high volume applications) Versa-Crimp (for low volume applications) WTC-1286-1 (for low volume and/or field terminations)
Wire Sizes + Insulation Outside Diameter	16 AWG: 0.077" 18 AWG: 0.068"/0.078"/0.080" 20 AWG: 0.068"/0.073"/0.082"
Pieces Per Reel (loose Part No.)	/
Pieces Per Reel (taped Part No.)	2000
Pieces Per Reel (small Reel Part No.)	/
Fiche produit	Télécharger la fiche produit

Les propriétés diffèrent selon les variantes et sous-variantes
