Housing for SMF Connector
Avez-vous des questions sur ce produit?
Plus d’infos sur cette marque:
JST
JST
Number Of Poles
- 1
| Article Number | 1P-SMF |
| Number Of Contacts | 1 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | Single-Circuit Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | Single-Circuit mm |
| Rated Current (ac/dc) | 5 A |
| Pcb Mount Style | Through-hole Technology (THT) |
Les propriétés diffèrent selon les variantes et sous-variantes

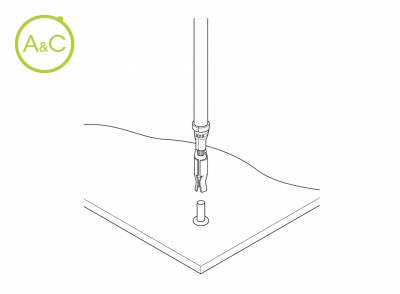

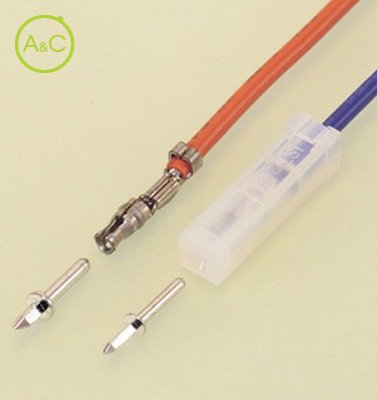

This small single-circuit connector connects to 1.0mm (.039") and 1.3mm (.051") diameter pins and requires only minimal space for connection of wires to high-density printed circuit boards.
The SMF connector has a funnel shaped lead-in to ease insertion and to ensure a balance with its high retaining force.
Standards
UL Recognized E60389
CSA Certified LR20812
RoHS Compliant
