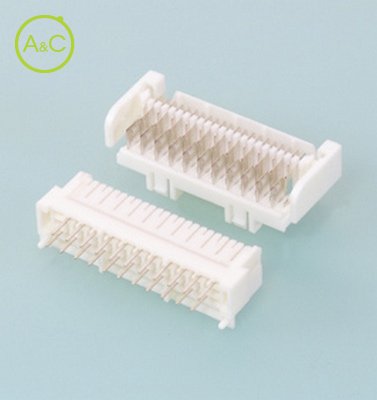

Plug for HQB Connector
Avez-vous des questions sur ce produit?
Plus d’infos sur cette marque:
JST
JST
Number Of Poles
- 22
- 24
- 30
- 36
| Article Number | 22P-HQBSS |
| Number Of Contacts | 22 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.5mm Pitch Board-to-Board Connector |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.50 mm |
| Rated Current (ac/dc) | 1.0 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Through-hole Technology (THT) |
Les propriétés diffèrent selon les variantes et sous-variantes

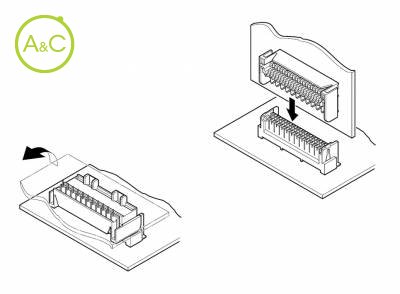

Hinge type board to board connectors which allow mated PCB's to move 90° in respect to one another while electricity is turned on.
The hinge compensates for slight misalignments between circuit boards to assure a secure connection even if the boards are laterally out of line up to 0.5mm (.020"). Header leads are staggered for easy board design.
Flexible connection by absorbing circuit board misalignment
The hinge compensates for slight misalignments between circuit boards to assure a secure connection even if the boards are out of line up to 0.5mm (.020"). This design and circuit checks can be as easily made as opening a door.
Hinged connection
With hinge construction, the HQB connector features flexibility. Thus this board to board connector allows mated PCB's to move 90° in respect to one another while electricity is turned on.
Standards
UL Recognized E60389
CSA Certified LR20812
RoHS Compliant
