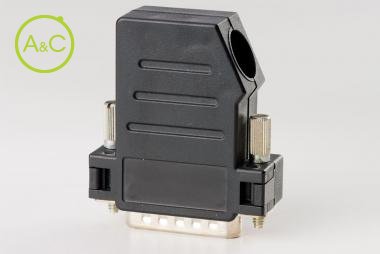

Compact D-Sub plastic hood for mixed layout connectors and standard use
Avez-vous des questions sur ce produit?
Plus d’infos sur cette marque:
Provertha
Provertha
Thread
- M3
- UNC 4-40
| Article Number | 47 15 5B 25 T 001 | 47 15 5M 25 T 001 |
| Cable Diameter Range | 5-11 mm | 5-11 mm |
| Number Of Contacts | 15 | 15 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| Cable Diameter | 5-11 mm | 5-11 mm |
| Material | ABS UL 94-V0 | ABS UL 94-V0 |
| Colour | Black | Black |

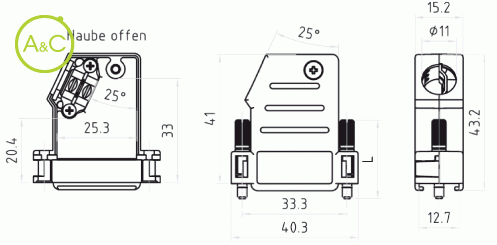

| Extra Information | Hood size 2 mixed layout D-Sub: 3W3 ( C)/7W2 Easy mounting due to design with helf-shell snap-in design and premounted knurled screws for locking Built-in cable clamp for the cable's strain relief Built-in dust cover collar Assembly grid in rack or device: 3 TE RoHS compliant | Hood size 2 mixed layout D-Sub: 3W3 ( C)/7W2 Easy mounting due to design with helf-shell snap-in design and premounted knurled screws for locking Built-in cable clamp for the cable's strain relief Built-in dust cover collar Assembly grid in rack or device: 3 TE RoHS compliant |
| Hood Version | black with 25 mm knurled screw | Metallized with 25 mm knurled screw |
| Locking Style | knurled screw | knurled screw |
| Cable Exit | Angled 1x25° | Angled 1x25° |
| Starting Torque | Max. 35 Ncm | Max. 35 Ncm |
| Metallization | Nickel plated | Nickel plated |
Les propriétés diffèrent selon les variantes et sous-variantes
