Receptacle Normal type SMT
Avez-vous des questions sur ce produit?
Plus d’infos sur cette marque:
JST
JST
Number Of Poles
- 50
| Article Number | 50R-JCD-SS11-1110 | 50R-JCD-SS11-1111A | 50R-JCD-SS11-1193 |
| Number Of Contacts | 50 | 50 | 50 |
| Upper Temperature | +85 °C | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C | -25 °C |
| General Description | 0.8mm Pitch Board-to-Board Connector | 0.8mm Pitch Board-to-Board Connector | 0.8mm Pitch Board-to-Board Connector |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 0.80 mm | 0.80 mm | 0.80 mm |
| Rated Current (ac/dc) | 0.5 A | 0.5 A | 0.5 A |
| Rated Voltage (ac/dc) | 50 V | 50 V | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) | Surface Mount Technology (SMT) | Surface Mount Technology (SMT) |
| Remark* | Height 10.0 mm | Height 11.0 mm | Height 9.3 mm |
Les propriétés diffèrent selon les variantes et sous-variantes

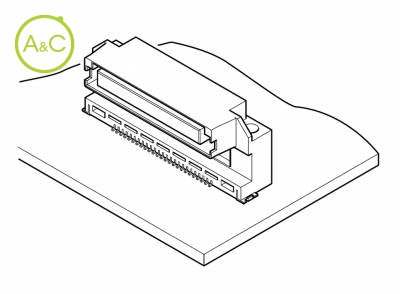

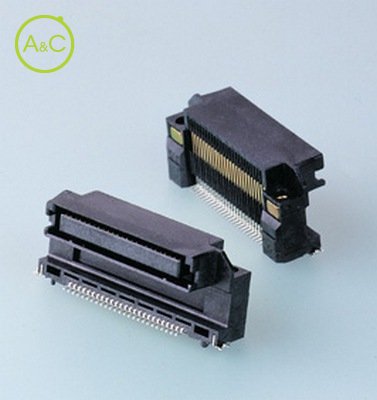

SMT, 0.8mm (.031") pitch board-to-board connector.
Board-to-board connectors designed for the connection of CD-ROM/DVD-ROM drive that is built in a notebook PC.
EC directive 2002/95/EC (the RoHS Directive) - Compliant
