Plug
Avez-vous des questions sur ce produit?
Plus d’infos sur cette marque:
JST
JST
Number Of Poles
- 55
| Article Number | 55PS-JDFK-SM-G |
| Number Of Contacts | 55 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.5mm Pitch Board-to-Board Connector |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.50 mm |
| Rated Current (ac/dc) | 1.0 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) |
Les propriétés diffèrent selon les variantes et sous-variantes

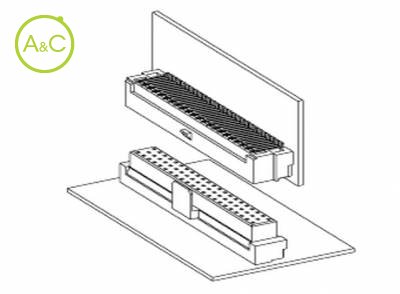

This 1.5mm (.059") pitch board-to-board connector has achieved further miniaturization in width by adopting a triple row structure. The connector is also equipped with a floating mechanism which absorbs misplacement when mounted to the board and misalignment when assembled.
Flexible structure
The floating structure of the receptacle means that it has a separate structure of upper and bottom part in order to absorb misplacement of the component of up to 0.5mm ( .020") both horizontally and vertically when mounted to the board and misalignment when assembled.
Highly reliable connection
Reliable connection is ensured by adopting a secure locking system and applying gold plating on the contact part.
Mounting type
Plug: SMT type
Receptacle: Through-hole type
Standards
UL Recognized E60389
RoHS Compliant
