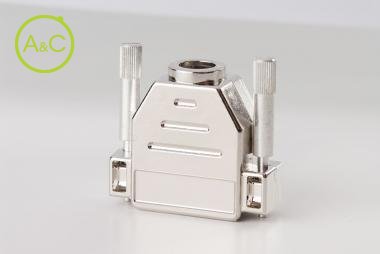

Pin hood with side screw locks

  • Pin hood packed as set
Télécharger la fiche produit

Number Of Poles

  • 9
  • 15
  • 25
Article Number 57 09 0B 25 T 001 57 09 0M 25 T 001
Number Of Contacts 9 9
Upper Temperature +90 °C +90 °C
Lower Temperature -20 °C -20 °C
Plating Nickel plated copper Nickel plated copper
Thread UNC 4-40 UNC 4-40
Remark* For a fastening screw with M3 thread put in the article number M3 before the "T" For a fastening screw with M3 thread put in the article number M3 before the "T"
Material ABS UL 94-V0 ABS UL 94-V0
Extra Information Reduced assembly time by clip- or pin connection between both parts of the hood Suitable for flat-strip connectors Reduced assembly time by clip- or pin connection between both parts of the hood Suitable for flat-strip connectors
Hood Version black with 25 mm slotted screw Metallized with 25 mm thumb screw + slot
Locking Style knurled screw knurled screw
Cable Exit Straight Straight
Cable Fixing Clamp intern (al) Clamp intern (al)
Cable Diameter Internal Cable Clamp 4-10 4-10
Material/surface Cover Screws ST Zinc plated ST Zinc plated
Les propriétés diffèrent selon les variantes et sous-variantes
