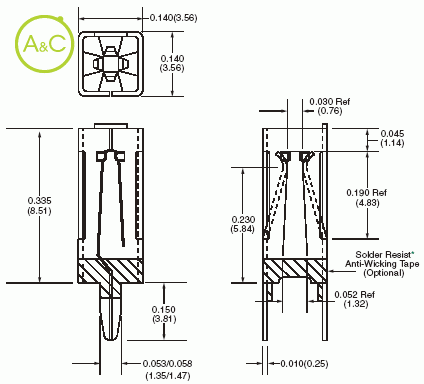

Bottom Entry 4 Beam Box Receptacles

  • Mating terminal size is 1,52-2,41 mm
  • General
Article Number 6062-101
Packaging Reeled
Extra Description Mating terminal size is 1,52-2,41 mm
Mating Terminal Size 0.060" (1.52mm) Rd. or Sq. 0.095" (2.41mm) Rd. or Sq.
Material Thickness / Type 0.010" (0.25mm) C51000 Phosphor Bronze
Standard Finish 100% Tin over Copper
Current Rating Ul 10 Amperes
Current Rating C-ul 10 Amperes
Ul File Number E361770
Applicator System Model 9700, 9700 XY
Taperesist™ Optional
Mating Type Vertical
Mounting Type Outward Splay
Mounting Hole Diameter 0.150" ±0.003" (3.81mm ±0.076mm)
Resistance Rating 10mOhm Max
Mating Entry Bottom
Temperature Rating -65° to 105°C
Insertion Force-max. Application Dependent / Submit Mating Terminal Sample to Factory
Withdrawal Force-max. Application Dependent / Submit Mating Terminal Sample to Factory
Pieces Per Reel (reeled Part No.) 5000
Fiche produit Télécharger la fiche produit
Les propriétés diffèrent selon les variantes et sous-variantes
