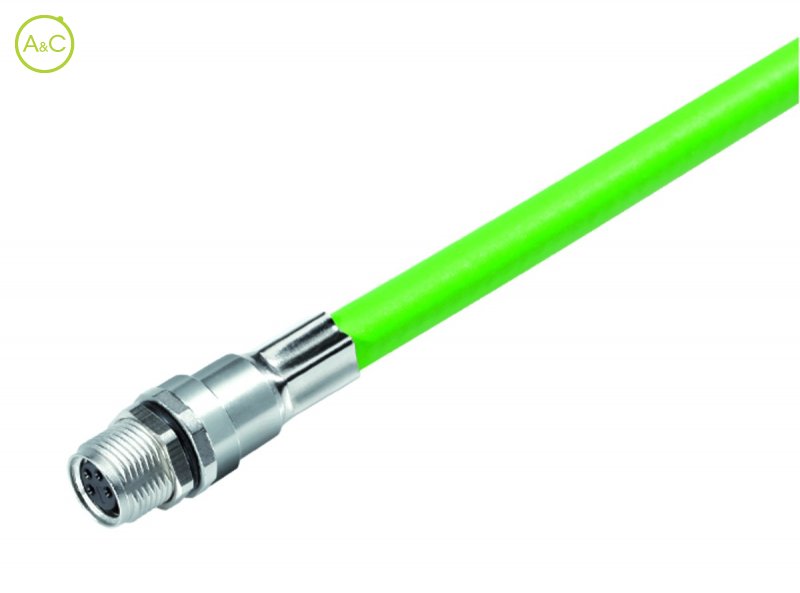

Female panel mount connector
Avez-vous des questions sur ce produit?
Plus d’infos sur cette marque:
Binder
Binder
Number Of Poles
- 4
| Article Number | 70 3420 005 04 |

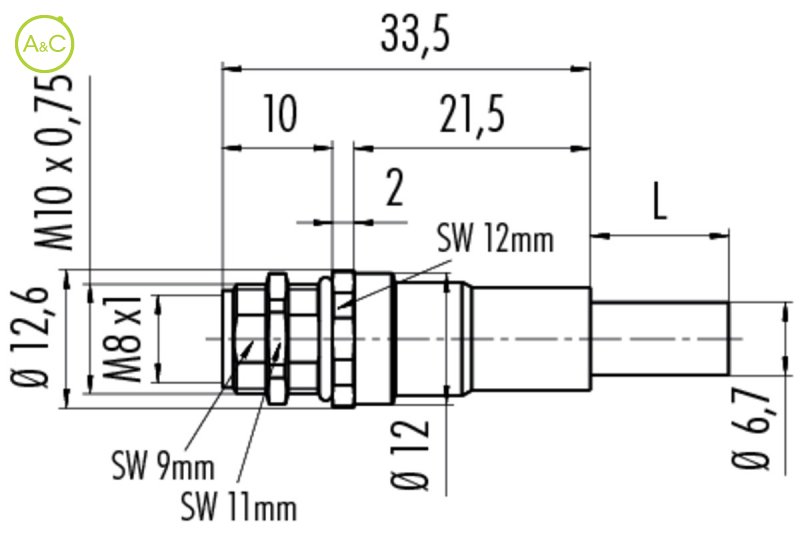

| Connector Diameter | 12.6 mm |
| Number Of Contacts | 4 contacts |
| Connector Locking System | Screw (M8) |
| Termination | Dip solder |
| Cable Length | 0.5 mm |
| Protection Degree | IP67 |
| Mating Cycles | >50 times |
| Upper Temperature | +60 °C |
| Lower Temperature | -25 °C |
| Rated Voltage | 60 |
| Rated Impuls Voltage | 800 V |
| Pollution Degree | 3 |
| Overvoltage Categorie | II |
| Material Group | II |
| Rated Current (40°) | 4 A |
| Max. Contact Resistance | 3 mΩ |
| Material Of Contact | CuSn (Bronze) |
| Plating | Au (Gold) |
| Material Of Housing | PA, Zink Diecasting nickel plated, CuZn (Brass nickel plated) |
| Insulation Single Lead | Polyolefin |
| Single Lead Structure | 7x0,34 (AWG22) |
| Cable Sheath Ø | 6.7 mm |
| Conductor Resistance | 55 Ω/km |
| Bending Radius Cable Fixed | min. 5xd |
| Bending Radius Cable Movable | min.15xd |
| Material Housing Of Cable | PUR green |
| Fiche produit | Télécharger la fiche produit |
Les propriétés diffèrent selon les variantes et sous-variantes
