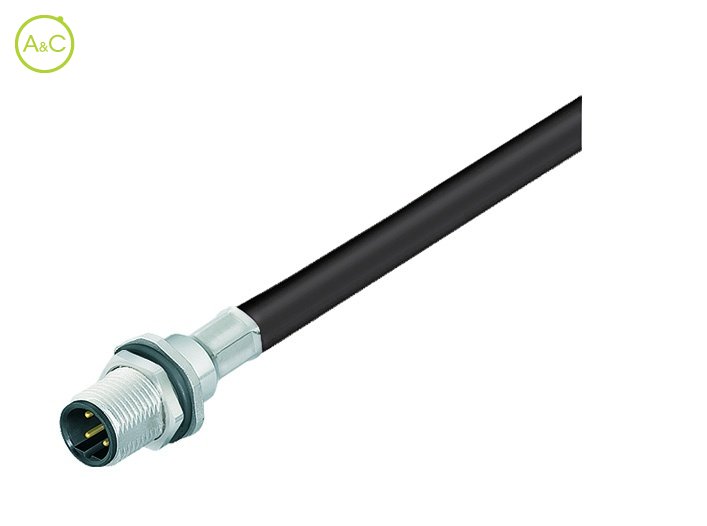

Male panel mount connector

Avez-vous des questions sur ce produit?

Plus d’infos sur cette marque:

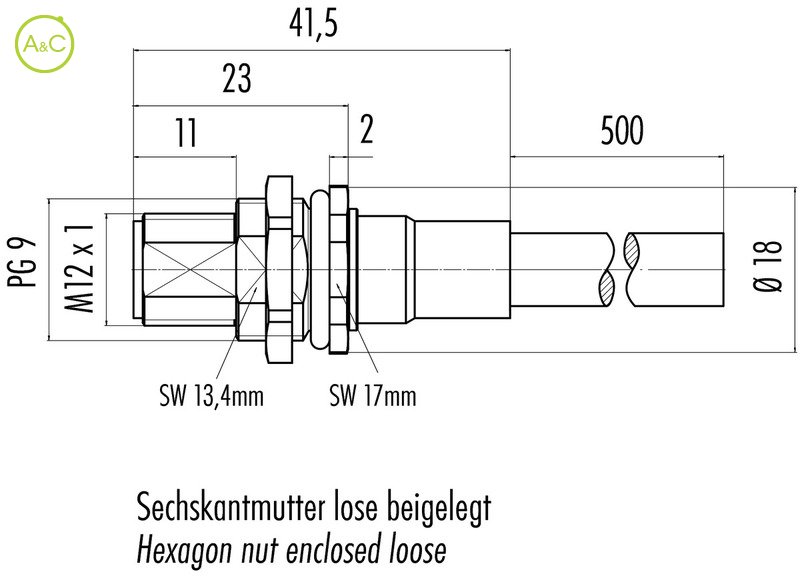

Article Number	70 3441 287 05
Connector Diameter	18 mm
Number Of Contacts	5 contacts
Connector Locking System	Screw (M12-A)
Termination	PUR-cable
Wire Section	0.25 mm²
Cable Length	0.5 mm
Protection Degree	IP68*
Mating Cycles	>100 times
Upper Temperature	70 °C
Lower Temperature	-5 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	4 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	Brass/zinc diecasting nickel plated
Cable Diameter	5,3 mm
Fixing Thread	PG 9
Remark**	*When built-in, connected and locked with counterpart
Fiche produit	Télécharger la fiche produit

Article Number	70 3481 287 08
Connector Diameter	18 mm
Number Of Contacts	8 contacts
Connector Locking System	Screw (M12-A)
Termination	PUR-cable
Wire Section	0.25 mm²
Cable Length	0.5 mm
Protection Degree	IP68*
Mating Cycles	>100 times
Upper Temperature	70 °C
Lower Temperature	-5 °C
Rated Voltage	60
Rated Impuls Voltage	800 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	2 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	Brass/zinc diecasting nickel plated
Cable Diameter	6 mm
Fixing Thread	PG 9
Remark**	*When built-in, connected and locked with counterpart
Fiche produit	Télécharger la fiche produit

Les propriétés diffèrent selon les variantes et sous-variantes
