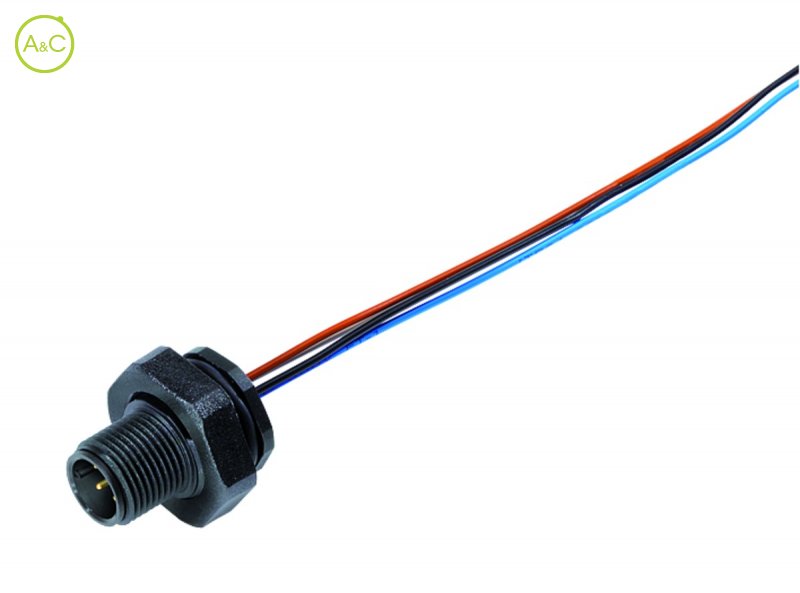

Male panel mount connector

Avez-vous des questions sur ce produit?

Plus d’infos sur cette marque:

Article Number	76 4731 3011 00004 0200
Connector Diameter	21 mm
Number Of Contacts	4 contacts
Connector Locking System	Screw (M12-A)
Termination	Strands
Wire Section	0.25 mm²
Protection Degree	IP67
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	250
Rated Impuls Voltage	2500 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	1.5 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	PA
Fixing Thread	M16 x 1,5
Wire Gauge	24 AWG
Fiche produit	Télécharger la fiche produit

Article Number	76 4731 3011 00005 0200
Connector Diameter	21 mm
Number Of Contacts	5 contacts
Connector Locking System	Screw (M12-A)
Termination	Strands
Wire Section	0.25 mm²
Protection Degree	IP67
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	60
Rated Impuls Voltage	1500 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	1.5 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	PA
Fixing Thread	M16 x 1,5
Wire Gauge	24 AWG
Fiche produit	Télécharger la fiche produit

Article Number	76 4731 3011 00008 0200
Connector Diameter	21 mm
Number Of Contacts	8 contacts
Connector Locking System	Screw (M12-A)
Termination	Strands
Wire Section	0.25 mm²
Protection Degree	IP67
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	30
Rated Impuls Voltage	800 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	1.5 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	PA
Fixing Thread	M16 x 1,5
Wire Gauge	24 AWG
Fiche produit	Télécharger la fiche produit

Article Number	76 4731 3111 00012 0200
Connector Diameter	21 mm
Number Of Contacts	12 contacts
Connector Locking System	Screw (M12-A)
Termination	Strands
Wire Section	0.14 mm²
Protection Degree	IP67
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	30
Rated Impuls Voltage	800 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	1.5 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	PA
Fixing Thread	M16 x 1,5
Wire Gauge	26 AWG
Fiche produit	Télécharger la fiche produit

Les propriétés diffèrent selon les variantes et sous-variantes
