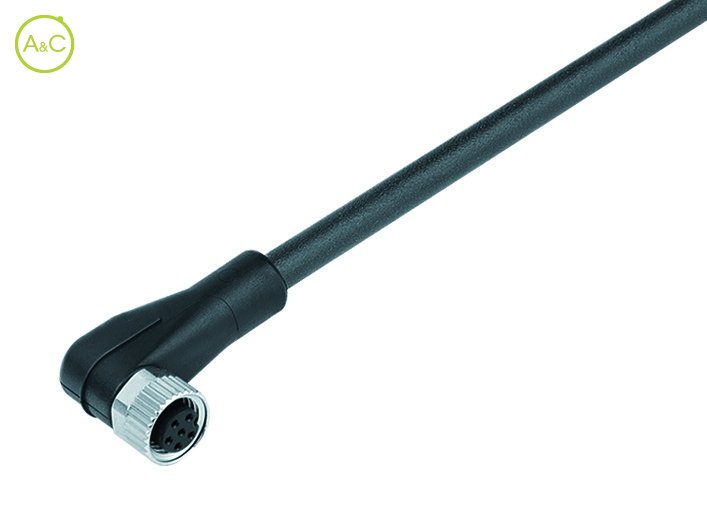

Female angled connector

Avez-vous des questions sur ce produit?

Plus d’infos sur cette marque:

Article Number	77 3408 0000 20003 0500	77 3408 0000 50003 0500
Old Article Number	79 3408 45 03	79 3408 55 03
Connector Diameter	9.7 mm	9.7 mm
Number Of Contacts	3 contacts	3 contacts
Connector Locking System	Screw (M8)	Screw (M8)
Termination	Crimp, moulded	Crimp, moulded
Wire Section	0.25 mm²	0.25 mm²
Cable Length	5 mm	5 mm
Protection Degree	IP67	IP67
Mating Cycles	>100 times	>100 times
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	60	60
Rated Impuls Voltage	800 V	800 V
Pollution Degree	3	3
Overvoltage Categorie	II	II
Material Group	II	II
Rated Current (40°)	4 A	4 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PUR	PUR
Material Of Housing	PUR	PUR
Cable Diameter	4,5 mm	4,5 mm
Cable Jacket Material	PVC	PUR
Insulation Wire	PVC	PVC
Fiche produit	Télécharger la fiche produit	Télécharger la fiche produit

Article Number	77 3408 0000 20004 0500	77 3408 0000 50004 0500
Old Article Number	79 3384 45 04	79 3384 55 04
Connector Diameter	9.7 mm	9.7 mm
Number Of Contacts	4 contacts	4 contacts
Connector Locking System	Screw (M8)	Screw (M8)
Termination	Crimp, moulded	Crimp, moulded
Wire Section	0.25 mm²	0.25 mm²
Cable Length	5 mm	5 mm
Protection Degree	IP67	IP67
Mating Cycles	>100 times	>100 times
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	30	30
Rated Impuls Voltage	800 V	800 V
Pollution Degree	3	3
Overvoltage Categorie	II	II
Material Group	II	II
Rated Current (40°)	4 A	4 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PUR	PUR
Material Of Housing	PUR	PUR
Cable Diameter	4,5 mm	4,5 mm
Cable Jacket Material	PVC	PUR
Insulation Wire	PVC	PVC
Fiche produit	Télécharger la fiche produit	Télécharger la fiche produit

Article Number	77 3408 0000 50006 0500
Old Article Number	79 3468 55 06
Connector Diameter	9.7 mm
Number Of Contacts	6 contacts
Connector Locking System	Screw (M8)
Termination	Crimp, moulded
Wire Section	0.25 mm²
Cable Length	5 mm
Protection Degree	IP67
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-25 °C
Rated Voltage	30
Rated Impuls Voltage	800 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	1.5 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PUR
Material Of Housing	PUR
Cable Diameter	5 mm
Cable Jacket Material	PUR
Insulation Wire	PP
Fiche produit	Télécharger la fiche produit

Article Number	77 3408 0000 20008 0500	77 3408 0000 50008 0500
Old Article Number	79 3806 45 08	79 3806 55 08
Connector Diameter	9.7 mm	9.7 mm
Number Of Contacts	8 contacts	8 contacts
Connector Locking System	Screw (M8)	Screw (M8)
Termination	Crimp, moulded	Crimp, moulded
Wire Section	0.25 mm²	0.25 mm²
Cable Length	5 mm	5 mm
Protection Degree	IP67	IP67
Mating Cycles	>100 times	>100 times
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	30	30
Rated Impuls Voltage	800 V	800 V
Pollution Degree	3	3
Overvoltage Categorie	II	II
Material Group	II	II
Rated Current (40°)	1.5 A	1.5 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PUR	PUR
Material Of Housing	PUR	PUR
Cable Diameter	6 mm	6 mm
Cable Jacket Material	PVC	PUR
Insulation Wire	PVC	PP
Fiche produit	Télécharger la fiche produit	Télécharger la fiche produit

Les propriétés diffèrent selon les variantes et sous-variantes
