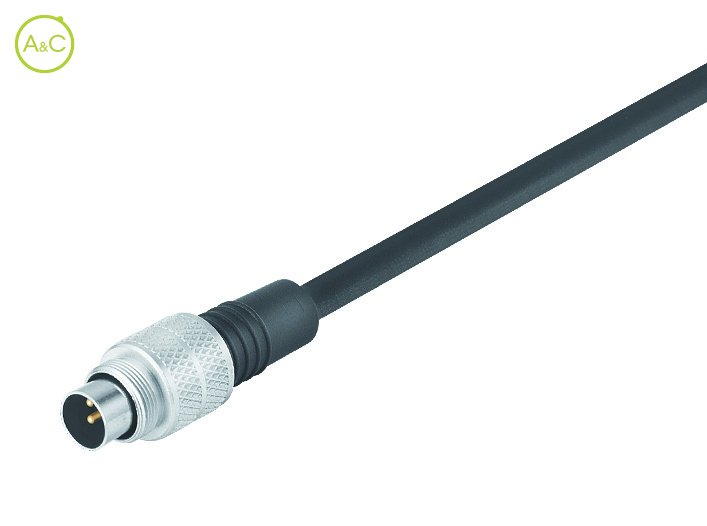

Male cable connector

Avez-vous des questions sur ce produit?

Plus d’infos sur cette marque:

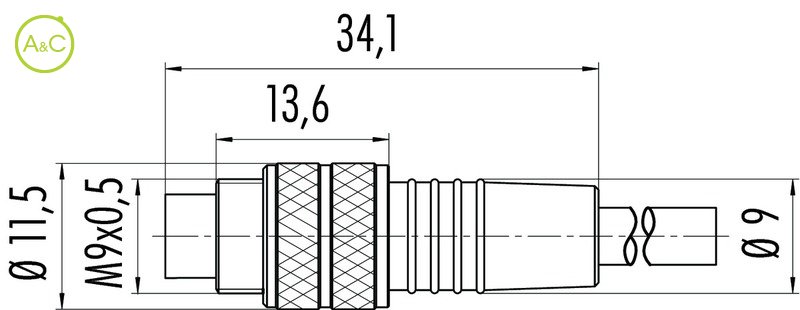

Article Number	79 1451 212 03	79 1451 215 03
Connector Diameter	11.5 mm	11.5 mm
Number Of Contacts	3 contacts	3 contacts
Connector Locking System	Screw (M9)	Screw (M9)
Termination	Moulded	Moulded
Wire Section	0.25 mm²	0.25 mm²
Protection Degree	IP67	IP67
Mating Cycles	>500 times	>500 times
Upper Temperature	+70 °C	+70 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	125	125
Rated Impuls Voltage	1500 V	1500 V
Pollution Degree	1	1
Overvoltage Categorie	II	II
Material Group	III	III
Rated Current (40°)	4 A	4 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PBT (UL 94 V-0)	PBT (UL 94 V-0)
Material Of Housing	PUR	PUR
Cable Diameter	4,5 mm	4,5 mm
Fiche produit	Télécharger la fiche produit	Télécharger la fiche produit

Article Number	79 1455 212 05	79 1455 215 05
Connector Diameter	11.5 mm	11.5 mm
Number Of Contacts	5 contacts	5 contacts
Connector Locking System	Screw (M9)	Screw (M9)
Termination	Moulded	Moulded
Wire Section	0.25 mm²	0.25 mm²
Protection Degree	IP67	IP67
Mating Cycles	>500 times	>500 times
Upper Temperature	+70 °C	+70 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	125	125
Rated Impuls Voltage	1500 V	1500 V
Pollution Degree	1	1
Overvoltage Categorie	II	II
Material Group	III	III
Rated Current (40°)	3 A	3 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PBT (UL 94 V-0)	PBT (UL 94 V-0)
Material Of Housing	PUR	PUR
Cable Diameter	5 mm	5 mm
Fiche produit	Télécharger la fiche produit	Télécharger la fiche produit

Article Number	79 1461 212 08	79 1461 215 08
Connector Diameter	11.5 mm	11.5 mm
Number Of Contacts	8 contacts	8 contacts
Connector Locking System	Screw (M9)	Screw (M9)
Termination	Moulded	Moulded
Wire Section	0.14 mm²	0.14 mm²
Protection Degree	IP67	IP67
Mating Cycles	>500 times	>500 times
Upper Temperature	+70 °C	+70 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	125	125
Rated Impuls Voltage	1500 V	1500 V
Pollution Degree	1	1
Overvoltage Categorie	II	II
Material Group	III	III
Rated Current (40°)	1 A	1 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PBT (UL 94 V-0)	PBT (UL 94 V-0)
Material Of Housing	PUR	PUR
Cable Diameter	5 mm	5 mm
Fiche produit	Télécharger la fiche produit	Télécharger la fiche produit

Les propriétés diffèrent selon les variantes et sous-variantes
