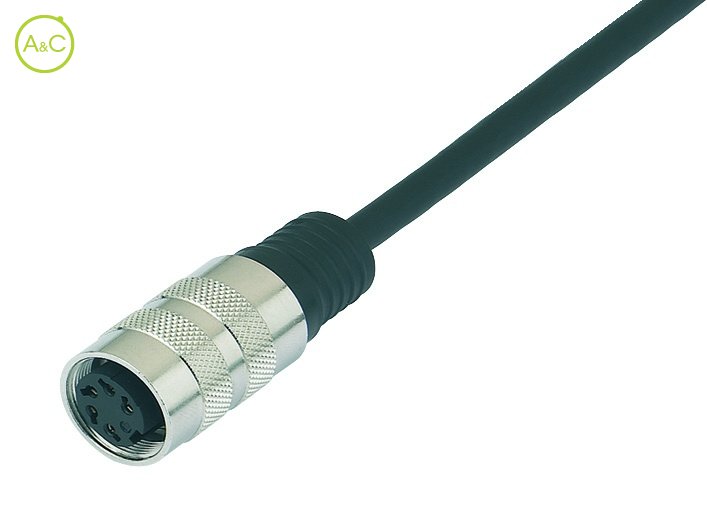

Female cable connector

Avez-vous des questions sur ce produit?

Plus d’infos sur cette marque:

Article Number	79 6014 20 05

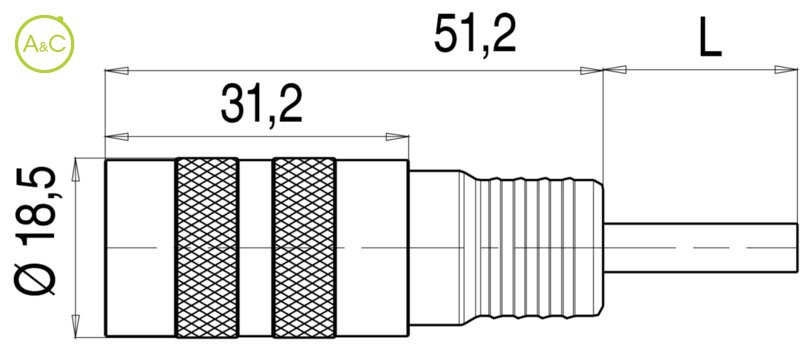

Connector Diameter	18.5 mm
Number Of Contacts	5 contacts
Connector Locking System	Screw (M16)
Termination	Solder, moulded
Wire Section	5 x 0,25 mm²
Cable Length	2 mm
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+70 °C
Lower Temperature	-25 °C
Rated Voltage	250 (32)
Rated Impuls Voltage	1500 V
Pollution Degree	1 (2)*
Overvoltage Categorie	I (II)*
Material Group	III
Rated Current (40°)	3 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PBT (UL 94 V-0)
Material Of Housing	PUR
Cable Diameter	5 mm
Remark**	*In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V.
Fiche produit	Télécharger la fiche produit

Article Number	79 6072 20 08
Connector Diameter	18.5 mm
Number Of Contacts	8 DIN contacts
Connector Locking System	Screw (M16)
Termination	Solder, moulded
Wire Section	8 x 0,25 mm²
Cable Length	2 mm
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+70 °C
Lower Temperature	-25 °C
Rated Voltage	60 (32)
Rated Impuls Voltage	500 V
Pollution Degree	1 (2)*
Overvoltage Categorie	I (II)*
Material Group	III
Rated Current (40°)	3 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PBT (UL 94 V-0)
Material Of Housing	PUR
Cable Diameter	5,7 mm
Remark**	*In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V.
Fiche produit	Télécharger la fiche produit

Article Number	79 6030 20 12
Connector Diameter	18.5 mm
Number Of Contacts	12 contacts
Connector Locking System	Screw (M16)
Termination	Solder, moulded
Wire Section	12 x 0,25 mm²
Cable Length	2 mm
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+70 °C
Lower Temperature	-25 °C
Rated Voltage	60 (32)
Rated Impuls Voltage	500 V
Pollution Degree	1 (2)*
Overvoltage Categorie	I (II)*
Material Group	III
Rated Current (40°)	3 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PBT (UL 94 V-0)
Material Of Housing	PUR
Cable Diameter	7 mm
Remark**	*In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V.
Fiche produit	Télécharger la fiche produit

Article Number	79 6052 20 14
Connector Diameter	18.5 mm
Number Of Contacts	14 contacts
Connector Locking System	Screw (M16)
Termination	Solder, moulded
Wire Section	8 x 0,25 / 2 x 0,5 mm²
Cable Length	2 mm
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+70 °C
Lower Temperature	-25 °C
Rated Voltage	60 (32)
Rated Impuls Voltage	500 V
Pollution Degree	1 (2)*
Overvoltage Categorie	I (II)*
Material Group	III
Rated Current (40°)	3 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PBT (UL 94 V-0)
Material Of Housing	PUR
Cable Diameter	8 mm
Remark**	*In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V.
Fiche produit	Télécharger la fiche produit

Les propriétés diffèrent selon les variantes et sous-variantes
