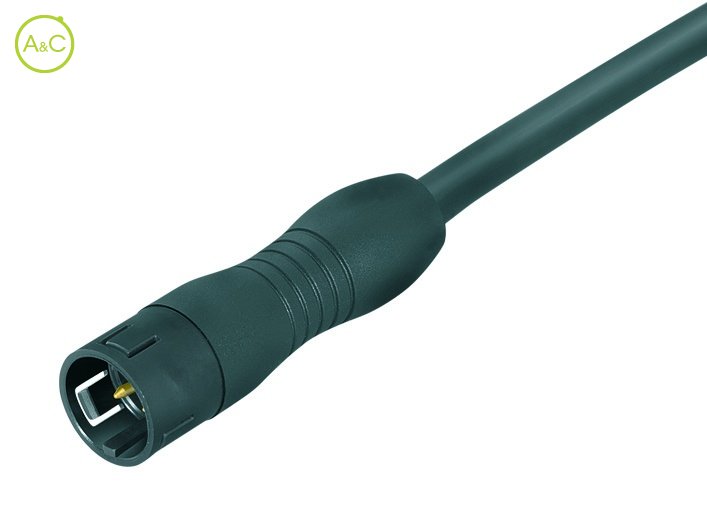

Male cable connector

Avez-vous des questions sur ce produit?

Plus d’infos sur cette marque:

Article Number	79 9149 020 03

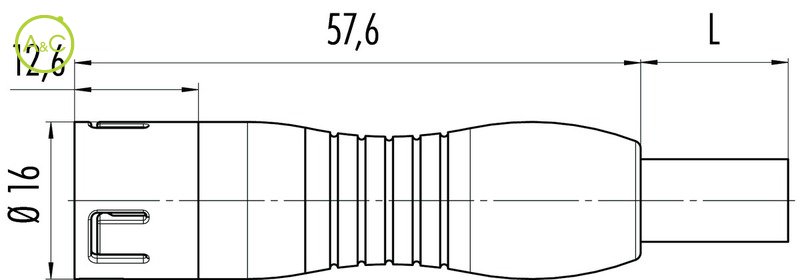

Connector Diameter	16 mm
Number Of Contacts	3 contacts
Connector Locking System	Snap-in
Termination	Moulded
Wire Section	0.75 mm²
Cable Length	2 mm
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+70 °C
Lower Temperature	-40 °C
Rated Voltage	250
Rated Impuls Voltage	2500 V
Pollution Degree	2
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	7 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PA (UL 94 V-0)
Material Of Housing	PUR
Cable Diameter	6,9 mm
Fiche produit	Télécharger la fiche produit

Article Number	79 9157 020 05
Connector Diameter	16 mm
Number Of Contacts	5 contacts
Connector Locking System	Snap-in
Termination	Moulded
Wire Section	0.75 mm²
Cable Length	2 mm
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+70 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	2
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	5 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PA (UL 94 V-0)
Material Of Housing	PUR
Cable Diameter	6,9 mm
Fiche produit	Télécharger la fiche produit

Article Number	79 9169 020 08
Connector Diameter	16 mm
Number Of Contacts	8 contacts
Connector Locking System	Snap-in
Termination	Moulded
Wire Section	0.25 mm²
Cable Length	2 mm
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+70 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	2500 V
Pollution Degree	2
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	2 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PA (UL 94 V-0)
Material Of Housing	PUR
Cable Diameter	5,7 mm
Fiche produit	Télécharger la fiche produit

Article Number	79 9177 020 12
Connector Diameter	16 mm
Number Of Contacts	12 contacts
Connector Locking System	Snap-in
Termination	Moulded
Wire Section	0.25 mm²
Cable Length	2 mm
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+70 °C
Lower Temperature	-40 °C
Rated Voltage	60
Rated Impuls Voltage	800 V
Pollution Degree	2
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	2 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PA (UL 94 V-0)
Material Of Housing	PUR
Cable Diameter	7 mm
Fiche produit	Télécharger la fiche produit

Les propriétés diffèrent selon les variantes et sous-variantes
