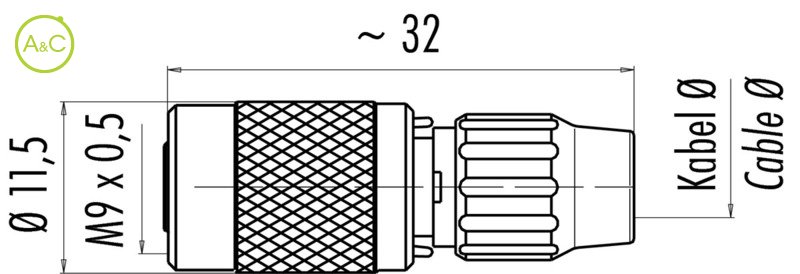

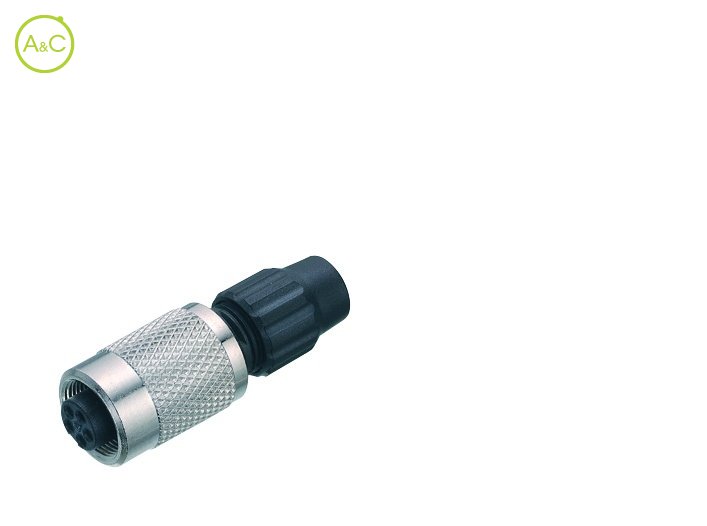

Female cable connector

Avez-vous des questions sur ce produit?

Plus d’infos sur cette marque:

Article Number	99 0072 100 02	99 0072 102 02
Connector Diameter	11.5 mm	11.5 mm
Number Of Contacts	2 contacts	2 contacts
Connector Locking System	Screw (M9)	Screw (M9)
Termination	Solder	Solder
Wire Section	0.25 mm²	0.25 mm²
Protection Degree	IP40	IP40
Mating Cycles	>500 times	>500 times
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-40 °C	-40 °C
Rated Voltage	125	125
Rated Impuls Voltage	1500 V	1500 V
Pollution Degree	1	1
Overvoltage Categorie	II	II
Material Group	III	III
Rated Current (40°)	4 A	4 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuSn (Bronze)	CuSn (Bronze)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PA (UL 94 V-0)	PA (UL 94 V-0)
Material Of Housing	PA (UL 94 VH-B)	PA (UL 94 VH-B)
Fiche produit	Télécharger la fiche produit	Télécharger la fiche produit

Article Number	99 0076 100 03	99 0076 102 03
Connector Diameter	11.5 mm	11.5 mm
Number Of Contacts	3 contacts	3 contacts
Connector Locking System	Screw (M9)	Screw (M9)
Termination	Solder	Solder
Wire Section	0.25 mm²	0.25 mm²
Protection Degree	IP40	IP40
Mating Cycles	>500 times	>500 times
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-40 °C	-40 °C
Rated Voltage	125	125
Rated Impuls Voltage	1500 V	1500 V
Pollution Degree	1	1
Overvoltage Categorie	II	II
Material Group	III	III
Rated Current (40°)	4 A	4 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuSn (Bronze)	CuSn (Bronze)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PA (UL 94 V-0)	PA (UL 94 V-0)
Material Of Housing	PA (UL 94 VH-B)	PA (UL 94 VH-B)
Fiche produit	Télécharger la fiche produit	Télécharger la fiche produit

Article Number	99 0080 100 04	99 0080 102 04
Connector Diameter	11.5 mm	11.5 mm
Number Of Contacts	4 contacts	4 contacts
Connector Locking System	Screw (M9)	Screw (M9)
Termination	Solder	Solder
Wire Section	0.25 mm²	0.25 mm²
Protection Degree	IP40	IP40
Mating Cycles	>500 times	>500 times
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-40 °C	-40 °C
Rated Voltage	125	125
Rated Impuls Voltage	1500 V	1500 V
Pollution Degree	1	1
Overvoltage Categorie	II	II
Material Group	III	III
Rated Current (40°)	3 A	3 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuSn (Bronze)	CuSn (Bronze)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PA (UL 94 V-0)	PA (UL 94 V-0)
Material Of Housing	PA (UL 94 VH-B)	PA (UL 94 VH-B)
Fiche produit	Télécharger la fiche produit	Télécharger la fiche produit

Article Number	99 0096 100 05	99 0096 102 05
Connector Diameter	11.5 mm	11.5 mm
Number Of Contacts	5 contacts	5 contacts
Connector Locking System	Screw (M9)	Screw (M9)
Termination	Solder	Solder
Wire Section	0.25 mm²	0.25 mm²
Protection Degree	IP40	IP40
Mating Cycles	>500 times	>500 times
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-40 °C	-40 °C
Rated Voltage	125	125
Rated Impuls Voltage	1500 V	1500 V
Pollution Degree	1	1
Overvoltage Categorie	II	II
Material Group	III	III
Rated Current (40°)	3 A	3 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuSn (Bronze)	CuSn (Bronze)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PA (UL 94 V-0)	PA (UL 94 V-0)
Material Of Housing	PA (UL 94 VH-B)	PA (UL 94 VH-B)
Fiche produit	Télécharger la fiche produit	Télécharger la fiche produit

Article Number	99 0476 100 07	99 0476 102 07
Connector Diameter	11.5 mm	11.5 mm
Number Of Contacts	7 contacts	7 contacts
Connector Locking System	Screw (M9)	Screw (M9)
Termination	Solder	Solder
Wire Section	0.14 mm²	0.14 mm²
Protection Degree	IP40	IP40
Mating Cycles	>500 times	>500 times
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-40 °C	-40 °C
Rated Voltage	125	125
Rated Impuls Voltage	1500 V	1500 V
Pollution Degree	1	1
Overvoltage Categorie	II	II
Material Group	III	III
Rated Current (40°)	1 A	1 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuSn (Bronze)	CuSn (Bronze)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PA (UL 94 V-0)	PA (UL 94 V-0)
Material Of Housing	PA (UL 94 VH-B)	PA (UL 94 VH-B)
Fiche produit	Télécharger la fiche produit	Télécharger la fiche produit

Article Number	99 0480 100 08	99 0480 102 08
Connector Diameter	11.5 mm	11.5 mm
Number Of Contacts	8 contacts	8 contacts
Connector Locking System	Screw (M9)	Screw (M9)
Termination	Solder	Solder
Wire Section	0.14 mm²	0.14 mm²
Protection Degree	IP40	IP40
Mating Cycles	>500 times	>500 times
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-40 °C	-40 °C
Rated Voltage	125	125
Rated Impuls Voltage	1500 V	1500 V
Pollution Degree	1	1
Overvoltage Categorie	II	II
Material Group	III	III
Rated Current (40°)	1 A	1 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuSn (Bronze)	CuSn (Bronze)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PA (UL 94 V-0)	PA (UL 94 V-0)
Material Of Housing	PA (UL 94 VH-B)	PA (UL 94 VH-B)
Fiche produit	Télécharger la fiche produit	Télécharger la fiche produit

Les propriétés diffèrent selon les variantes et sous-variantes
