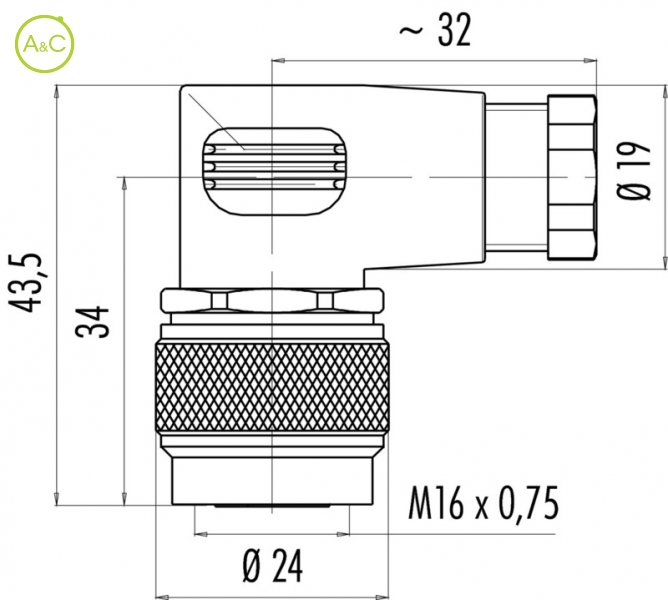

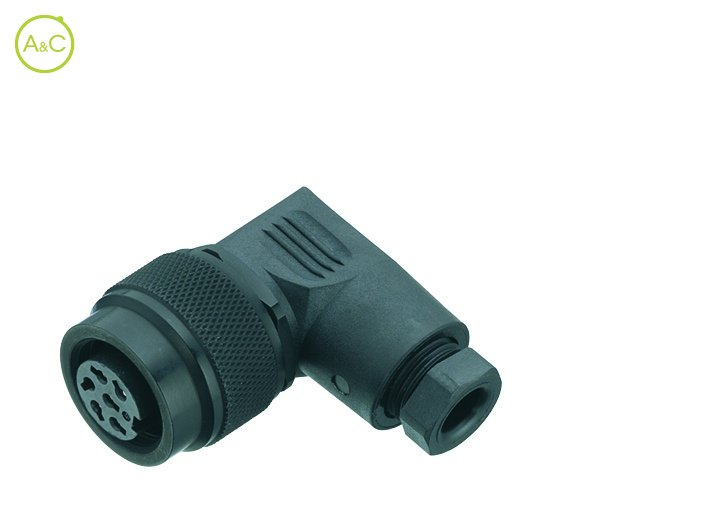

Female angled connector
Avez-vous des questions sur ce produit?
Plus d’infos sur cette marque:
Binder
Number Of Poles
- 2
- 3 DIN
- 4
- 5
- 5 (Stereo)
- 6 DIN
- 7
- 7 DIN
- 8 DIN
- 12
- 14
- 16
- 19
- 24
Article Number | 99 0102 106 02 | 99 0102 118 02 |
Connector Diameter | 24 mm | 24 mm |
Number Of Contacts | 2 contacts | 2 contacts |
Connector Locking System | Screw (M16) | Screw (M16) |
Termination | Solder | Solder |
Wire Section | 0.75 mm² | 0.75 mm² |
Protection Degree | IP67 | IP67 |
Mating Cycles | >500 times | >500 times |
Upper Temperature | +95 °C | +95 °C |
Lower Temperature | -40 °C | -40 °C |
Rated Voltage | 250 (32) | 250 (32) |
Rated Impuls Voltage | 1500 V | 1500 V |
Pollution Degree | 1 (2)* | 1 (2)* |
Overvoltage Categorie | I (II)* | I (II)* |
Material Group | III | III |
Rated Current (40°) | 7 A | 7 A |
Max. Contact Resistance | 5 mΩ | 3 mΩ |
Material Of Contact | CuSn (Bronze) | CuSn (Bronze) |
Material Of Insert | PBT (UL 94 V-0) | PBT (UL 94 V-0) |
Material Of Housing | PA (UL 94 HB) | PA (UL 94 HB) |
Cable Outlet | 4-6 mm | 4-6 mm |
Remark** | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
Fiche produit | Télécharger la fiche produit | Télécharger la fiche produit |
Article Number | 99 0106 106 03 | 99 0106 118 03 |
Connector Diameter | 24 mm | 24 mm |
Number Of Contacts | 3 DIN contacts | 3 DIN contacts |
Connector Locking System | Screw (M16) | Screw (M16) |
Termination | Solder | Solder |
Wire Section | 0.75 mm² | 0.75 mm² |
Protection Degree | IP67 | IP67 |
Mating Cycles | >500 times | >500 times |
Upper Temperature | +95 °C | +95 °C |
Lower Temperature | -40 °C | -40 °C |
Rated Voltage | 250 (32) | 250 (32) |
Rated Impuls Voltage | 1500 V | 1500 V |
Pollution Degree | 1 (2)* | 1 (2)* |
Overvoltage Categorie | I (II)* | I (II)* |
Material Group | III | III |
Rated Current (40°) | 7 A | 7 A |
Max. Contact Resistance | 5 mΩ | 3 mΩ |
Material Of Contact | CuSn (Bronze) | CuSn (Bronze) |
Material Of Insert | PBT (UL 94 V-0) | PBT (UL 94 V-0) |
Material Of Housing | PA (UL 94 HB) | PA (UL 94 HB) |
Cable Outlet | 4-6 mm | 4-6 mm |
Remark** | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
Fiche produit | Télécharger la fiche produit | Télécharger la fiche produit |
Article Number | 99 0110 106 04 | 99 0110 118 04 |
Connector Diameter | 24 mm | 24 mm |
Number Of Contacts | 4 contacts | 4 contacts |
Connector Locking System | Screw (M16) | Screw (M16) |
Termination | Solder | Solder |
Wire Section | 0.75 mm² | 0.75 mm² |
Protection Degree | IP67 | IP67 |
Mating Cycles | >500 times | >500 times |
Upper Temperature | +95 °C | +95 °C |
Lower Temperature | -40 °C | -40 °C |
Rated Voltage | 250 (32) | 250 (32) |
Rated Impuls Voltage | 1500 V | 1500 V |
Pollution Degree | 1 (2)* | 1 (2)* |
Overvoltage Categorie | I (II)* | I (II)* |
Material Group | III | III |
Rated Current (40°) | 6 A | 6 A |
Max. Contact Resistance | 5 mΩ | 3 mΩ |
Material Of Contact | CuSn (Bronze) | CuSn (Bronze) |
Material Of Insert | PBT (UL 94 V-0) | PBT (UL 94 V-0) |
Material Of Housing | PA (UL 94 HB) | PA (UL 94 HB) |
Cable Outlet | 4-6 mm | 4-6 mm |
Remark** | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
Fiche produit | Télécharger la fiche produit | Télécharger la fiche produit |
Article Number | 99 0114 106 05 | 99 0114 118 05 |
Connector Diameter | 24 mm | 24 mm |
Number Of Contacts | 5 contacts | 5 contacts |
Connector Locking System | Screw (M16) | Screw (M16) |
Termination | Solder | Solder |
Wire Section | 0.75 mm² | 0.75 mm² |
Protection Degree | IP67 | IP67 |
Mating Cycles | >500 times | >500 times |
Upper Temperature | +95 °C | +95 °C |
Lower Temperature | -40 °C | -40 °C |
Rated Voltage | 250 (32) | 250 (32) |
Rated Impuls Voltage | 1500 V | 1500 V |
Pollution Degree | 1 (2)* | 1 (2)* |
Overvoltage Categorie | I (II)* | I (II)* |
Material Group | III | III |
Rated Current (40°) | 6 A | 6 A |
Max. Contact Resistance | 5 mΩ | 3 mΩ |
Material Of Contact | CuSn (Bronze) | CuSn (Bronze) |
Material Of Insert | PBT (UL 94 V-0) | PBT (UL 94 V-0) |
Material Of Housing | PA (UL 94 HB) | PA (UL 94 HB) |
Cable Outlet | 4-6 mm | 4-6 mm |
Remark** | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
Fiche produit | Télécharger la fiche produit | Télécharger la fiche produit |
Article Number | 99 0118 106 05 | 99 0118 118 05 |
Connector Diameter | 24 mm | 24 mm |
Number Of Contacts | 5 (Stereo) contacts | 5 (Stereo) contacts |
Connector Locking System | Screw (M16) | Screw (M16) |
Termination | Solder | Solder |
Wire Section | 0.75 mm² | 0.75 mm² |
Protection Degree | IP67 | IP67 |
Mating Cycles | >500 times | >500 times |
Upper Temperature | +95 °C | +95 °C |
Lower Temperature | -40 °C | -40 °C |
Rated Voltage | 60 (32) | 60 (32) |
Rated Impuls Voltage | 500 V | 500 V |
Pollution Degree | 1 (2)* | 1 (2)* |
Overvoltage Categorie | I (II)* | I (II)* |
Material Group | III | III |
Rated Current (40°) | 6 A | 6 A |
Max. Contact Resistance | 5 mΩ | 3 mΩ |
Material Of Contact | CuSn (Bronze) | CuSn (Bronze) |
Material Of Insert | PBT (UL 94 V-0) | PBT (UL 94 V-0) |
Material Of Housing | PA (UL 94 HB) | PA (UL 94 HB) |
Cable Outlet | 4-6 mm | 4-6 mm |
Remark** | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
Fiche produit | Télécharger la fiche produit | Télécharger la fiche produit |
Article Number | 99 0122 106 06 | 99 0122 118 06 |
Connector Diameter | 24 mm | 24 mm |
Number Of Contacts | 6 DIN contacts | 6 DIN contacts |
Connector Locking System | Screw (M16) | Screw (M16) |
Termination | Solder | Solder |
Wire Section | 0.75 mm² | 0,75 mm² |
Protection Degree | IP67 | IP67 |
Mating Cycles | >500 times | >500 times |
Upper Temperature | +95 °C | +95 °C |
Lower Temperature | -40 °C | -40 °C |
Rated Voltage | 250 (32) | 250 (32) |
Rated Impuls Voltage | 1500 V | 1500 V |
Pollution Degree | 1 (2)* | 1 (2)* |
Overvoltage Categorie | I (II)* | I (II)* |
Material Group | III | III |
Rated Current (40°) | 5 A | 5 A |
Max. Contact Resistance | 5 mΩ | 3 mΩ |
Material Of Contact | CuSn (Bronze) | CuSn (Bronze) |
Material Of Insert | PBT (UL 94 V-0) | PBT (UL 94 V-0) |
Material Of Housing | PA (UL 94 HB) | PA (UL 94 HB) |
Cable Outlet | 4-6 mm | 4-6 mm |
Remark** | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. | |
Fiche produit | Télécharger la fiche produit |
Article Number | 99 0126 106 07 | 99 0126 118 07 |
Connector Diameter | 24 mm | 24 mm |
Number Of Contacts | 7 contacts | 7 contacts |
Connector Locking System | Screw (M16) | Screw (M16) |
Termination | Solder | Solder |
Wire Section | 0.75 mm² | 0.75 mm² |
Protection Degree | IP67 | IP67 |
Mating Cycles | >500 times | >500 times |
Upper Temperature | +95 °C | +95 °C |
Lower Temperature | -40 °C | -40 °C |
Rated Voltage | 125 (32) | 125 (32) |
Rated Impuls Voltage | 800 V | 800 V |
Pollution Degree | 1 (2)* | 1 (2)* |
Overvoltage Categorie | I (II)* | I (II)* |
Material Group | III | III |
Rated Current (40°) | 5 A | 5 A |
Max. Contact Resistance | 5 mΩ | 3 mΩ |
Material Of Contact | CuSn (Bronze) | CuSn (Bronze) |
Material Of Insert | PBT (UL 94 V-0) | PBT (UL 94 V-0) |
Material Of Housing | PA (UL 94 HB) | PA (UL 94 HB) |
Cable Outlet | 4-6 mm | 4-6 mm |
Remark** | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
Fiche produit | Télécharger la fiche produit | Télécharger la fiche produit |
Article Number | 99 0582 106 07 |
Connector Diameter | 24 mm |
Number Of Contacts | 7 DIN contacts |
Connector Locking System | Screw (M16) |
Termination | Solder |
Wire Section | 0.75 mm² |
Protection Degree | IP67 |
Mating Cycles | >500 times |
Upper Temperature | +95 °C |
Lower Temperature | -40 °C |
Rated Voltage | 60 (32) |
Rated Impuls Voltage | 500 V |
Pollution Degree | 1 (2)* |
Overvoltage Categorie | I (II)* |
Material Group | III |
Rated Current (40°) | 5 A |
Max. Contact Resistance | 5 mΩ |
Material Of Contact | CuSn (Bronze) |
Material Of Insert | PBT (UL 94 V-0) |
Material Of Housing | PA (UL 94 HB) |
Cable Outlet | 4-6 mm |
Remark** | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
Fiche produit | Télécharger la fiche produit |
Article Number | 99 0172 106 08 | 99 0172 118 08 |
Connector Diameter | 24 mm | 24 mm |
Number Of Contacts | 8 DIN contacts | 8 DIN contacts |
Connector Locking System | Screw (M16) | Screw (M16) |
Termination | Solder | Solder |
Wire Section | 0.75 mm² | 0.75 mm² |
Protection Degree | IP67 | IP67 |
Mating Cycles | >500 times | >500 times |
Upper Temperature | +95 °C | +95 °C |
Lower Temperature | -40 °C | -40 °C |
Rated Voltage | 60 (32) | 60 (32) |
Rated Impuls Voltage | 500 V | 500 V |
Pollution Degree | 1 (2)* | 1 (2)* |
Overvoltage Categorie | I (II)* | I (II)* |
Material Group | III | III |
Rated Current (40°) | 5 A | 5 A |
Max. Contact Resistance | 5 mΩ | 3 mΩ |
Material Of Contact | CuSn (Bronze) | CuSn (Bronze) |
Material Of Insert | PBT (UL 94 V-0) | PBT (UL 94 V-0) |
Material Of Housing | PA (UL 94 HB) | PA (UL 94 HB) |
Cable Outlet | 4-6 mm | 4-6 mm |
Remark** | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
Fiche produit | Télécharger la fiche produit | Télécharger la fiche produit |
Article Number | 99 0130 106 12 |
Connector Diameter | 24 mm |
Number Of Contacts | 12 contacts |
Connector Locking System | Screw (M16) |
Termination | Solder |
Wire Section | 0.25 mm² |
Protection Degree | IP67 |
Mating Cycles | >500 times |
Upper Temperature | +95 °C |
Lower Temperature | -40 °C |
Rated Voltage | 60 (32) |
Rated Impuls Voltage | 500 V |
Pollution Degree | 1 (2)* |
Overvoltage Categorie | I (II)* |
Material Group | III |
Rated Current (40°) | 3 A |
Max. Contact Resistance | 3 mΩ |
Material Of Contact | CuSn (Bronze) |
Material Of Insert | PBT (UL 94 V-0) |
Material Of Housing | PA (UL 94 HB) |
Cable Outlet | 4-6 mm |
Remark** | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
Fiche produit | Télécharger la fiche produit |
Article Number | 99 0452 106 14 |
Connector Diameter | 24 mm |
Number Of Contacts | 14 contacts |
Connector Locking System | Screw (M16) |
Termination | Solder |
Wire Section | 0,25 mm² |
Protection Degree | IP67 |
Mating Cycles | >500 times |
Upper Temperature | +95 °C |
Lower Temperature | -40 °C |
Rated Voltage | 60 (32) |
Rated Impuls Voltage | 500 V |
Pollution Degree | 1 (2)* |
Overvoltage Categorie | I (II)* |
Material Group | III |
Rated Current (40°) | 3 A |
Max. Contact Resistance | 3 mΩ |
Material Of Contact | CuSn (Bronze) |
Material Of Insert | PBT (UL 94 V-0) |
Material Of Housing | PA (UL 94 HB) |
Cable Outlet | 4-6 mm |
Remark** | |
Fiche produit |
Article Number | 99 0506 106 16 |
Connector Diameter | 24 mm |
Number Of Contacts | 16 contacts |
Connector Locking System | Screw (M16) |
Termination | Solder |
Wire Section | 0.25 mm² |
Protection Degree | IP67 |
Mating Cycles | >500 times |
Upper Temperature | +95 °C |
Lower Temperature | -40 °C |
Rated Voltage | 60 (32) |
Rated Impuls Voltage | 500 V |
Pollution Degree | 1 (2)* |
Overvoltage Categorie | I (II)* |
Material Group | III |
Rated Current (40°) | 3 A |
Max. Contact Resistance | 3 mΩ |
Material Of Contact | CuSn (Bronze) |
Material Of Insert | PBT (UL 94 V-0) |
Material Of Housing | PA (UL 94 HB) |
Cable Outlet | 4-6 mm |
Remark** | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
Fiche produit | Télécharger la fiche produit |
Article Number | 99 0462 106 19 |
Connector Diameter | 24 mm |
Number Of Contacts | 19 contacts |
Connector Locking System | Screw (M16) |
Termination | Solder |
Wire Section | 0.25 mm² |
Protection Degree | IP67 |
Mating Cycles | >500 times |
Upper Temperature | +95 °C |
Lower Temperature | -40 °C |
Rated Voltage | 60 (32) |
Rated Impuls Voltage | 500 V |
Pollution Degree | 1 (2)* |
Overvoltage Categorie | I (II)* |
Material Group | III |
Rated Current (40°) | 3 A |
Max. Contact Resistance | 3 mΩ |
Material Of Contact | CuSn (Bronze) |
Material Of Insert | PBT (UL 94 V-0) |
Material Of Housing | PA (UL 94 HB) |
Cable Outlet | 4-6 mm |
Remark** | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
Fiche produit | Télécharger la fiche produit |
Article Number | 99 0496 106 24 |
Connector Diameter | 24 mm |
Number Of Contacts | 24 contacts |
Connector Locking System | Screw (M16) |
Termination | Solder |
Wire Section | 0,14 mm² |
Protection Degree | IP67 |
Mating Cycles | >500 times |
Upper Temperature | +95 °C |
Lower Temperature | -40 °C |
Rated Voltage | 60 (32) |
Rated Impuls Voltage | 500 V |
Pollution Degree | 1 (2)* |
Overvoltage Categorie | I (II)* |
Material Group | III |
Rated Current (40°) | 1 A |
Max. Contact Resistance | 3 mΩ |
Material Of Contact | CuSn (Bronze) |
Material Of Insert | PBT (UL 94 V-0) |
Material Of Housing | PA (UL 94 HB) |
Cable Outlet | 4-6 mm |
Remark** | |
Fiche produit |
Les propriétés diffèrent selon les variantes et sous-variantes
