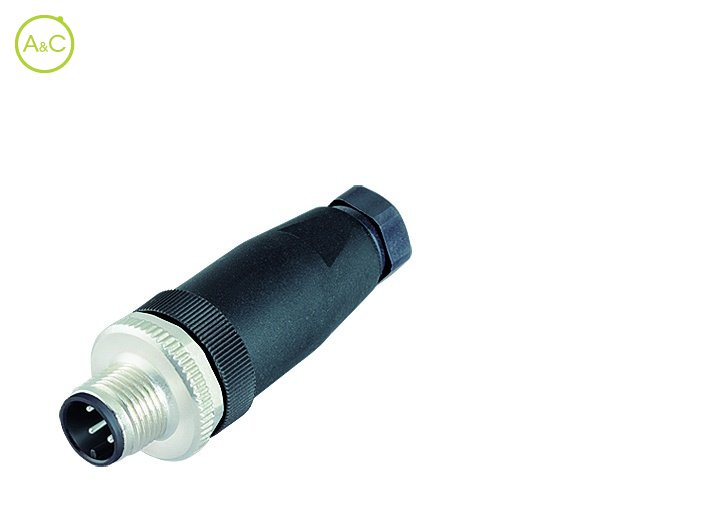

Male cable connector

Avez-vous des questions sur ce produit?

Plus d’infos sur cette marque:

Article Number	99 0429 15 04	99 0429 105 04

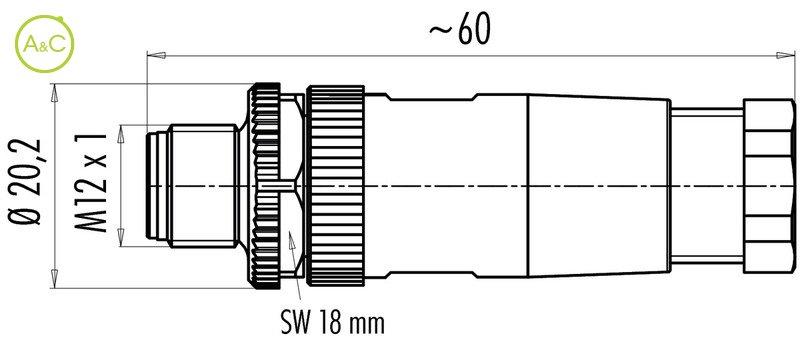

Connector Diameter	20.2 mm	20.2 mm
Number Of Contacts	4 contacts	4 contacts
Connector Locking System	Screw (M12-B)	Screw (M12-B)
Termination	Screw	Screw
Wire Section	0.75 mm²	0.75 mm²
Protection Degree	IP67	IP67
Mating Cycles	>50 times	>50 times
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-40 °C	-40 °C
Rated Voltage	250	250
Rated Impuls Voltage	2500 V	2500 V
Pollution Degree	3	3
Overvoltage Categorie	II	II
Material Group	III	III
Rated Current (40°)	4 A	4 A
Max. Contact Resistance	8 mΩ	8 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)
Plating	CuSnZn (Optalloy)	CuSnZn (Optalloy)
Material Of Insert	PA	PA
Material Of Housing	PA, zinc diecasting nickel plated	PA, zinc diecasting nickel plated
Fiche produit	Télécharger la fiche produit	Télécharger la fiche produit

Article Number	99 0437 15 05	99 0437 105 05
Connector Diameter	20.2 mm	20.2 mm
Number Of Contacts	5 contacts	5 contacts
Connector Locking System	Screw (M12-B)	Screw (M12-B)
Termination	Screw	Screw
Wire Section	0.75 mm²	0.75 mm²
Protection Degree	IP67	IP67
Mating Cycles	>50 times	>50 times
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-40 °C	-40 °C
Rated Voltage	125	125
Rated Impuls Voltage	1500 V	1500 V
Pollution Degree	3	3
Overvoltage Categorie	II	II
Material Group	III	III
Rated Current (40°)	4 A	4 A
Max. Contact Resistance	8 mΩ	8 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)
Plating	CuSnZn (Optalloy)	CuSnZn (Optalloy)
Material Of Insert	PA	PA
Material Of Housing	PA, zinc diecasting nickel plated	PA, zinc diecasting nickel plated
Fiche produit	Télécharger la fiche produit	Télécharger la fiche produit

Les propriétés diffèrent selon les variantes et sous-variantes
