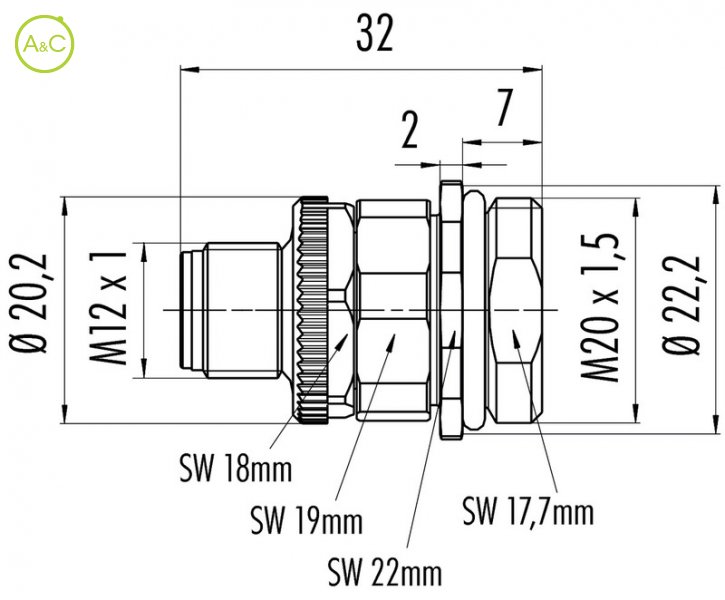

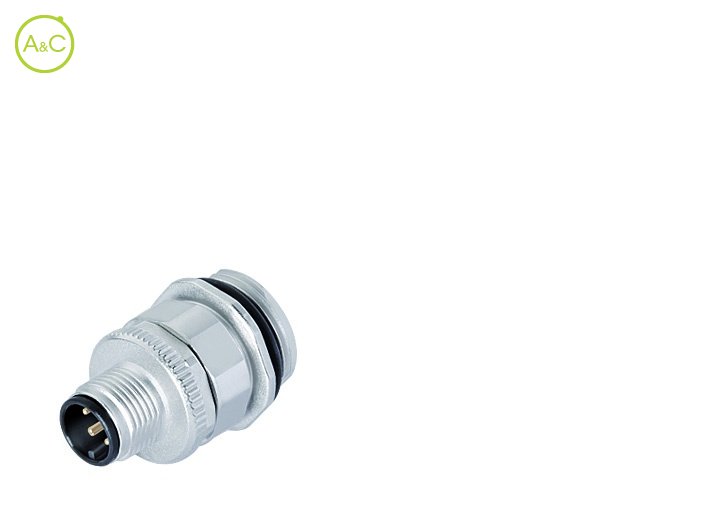

Male panel mount connector

Avez-vous des questions sur ce produit?

Plus d’infos sur cette marque:

Article Number	99 0431 500 04
Connector Diameter	22.2 mm
Number Of Contacts	4 contacts
Connector Locking System	Screw (M12-A)
Termination	Screw clamp
Wire Section	1.5 mm²
Protection Degree	IP67
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	250
Rated Impuls Voltage	2500 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	8 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	Zinc diecasting nickel plated
Fixing Thread	M20 x 1,5
Fiche produit	Télécharger la fiche produit

Article Number	99 0433 500 05
Connector Diameter	22.2 mm
Number Of Contacts	5 contacts
Connector Locking System	Screw (M12-A)
Termination	Screw clamp
Wire Section	1.5 mm²
Protection Degree	IP67
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	8 (pin 1-4) / 2 (pin 5) A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	Zinc diecasting nickel plated
Fixing Thread	M20 x 1,5
Fiche produit	Télécharger la fiche produit

Les propriétés diffèrent selon les variantes et sous-variantes
