Male cable connector

Avez-vous des questions sur ce produit?

Plus d’infos sur cette marque:

Article Number	99 0685 19 03
Connector Diameter	20.2 mm
Number Of Contacts	2+PE contacts
Connector Locking System	Screw (M12-S)
Termination	Screw clamp with insulated ferules
Wire Section	2.5 mm²
Protection Degree	IP67
Mating Cycles	>50 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	630
Rated Impuls Voltage	6000 V
Pollution Degree	3
Overvoltage Categorie	III
Material Group	III
Rated Current (40°)	16 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	PA
Cable Outlet	8-10 mm
Fiche produit	Télécharger la fiche produit

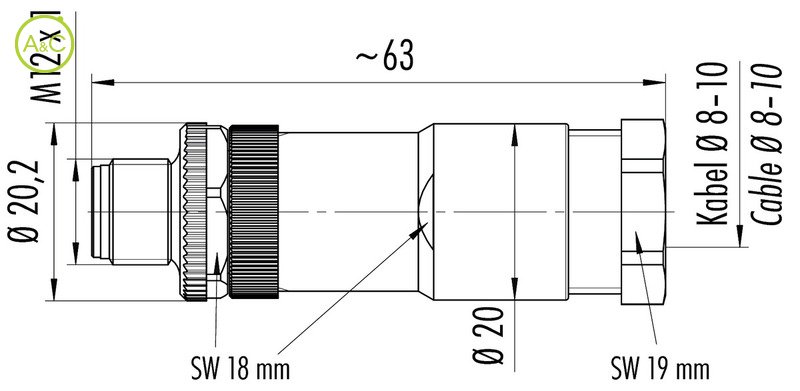

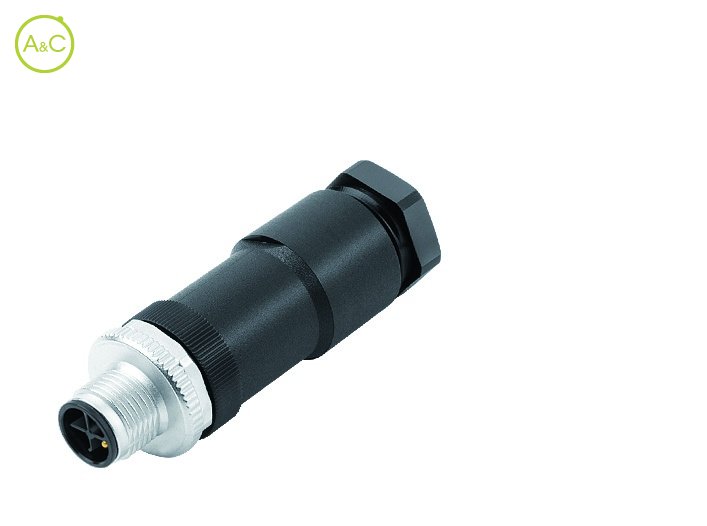

Article Number	99 0689 19 04
Connector Diameter	20.2 mm
Number Of Contacts	3+PE contacts
Connector Locking System	Screw (M12-S)
Termination	Screw clamp with insulated ferules
Wire Section	1.5 mm²
Protection Degree	IP67
Mating Cycles	>50 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	630
Rated Impuls Voltage	6000 V
Pollution Degree	3
Overvoltage Categorie	III
Material Group	III
Rated Current (40°)	12 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	PA
Cable Outlet	8-10 mm
Fiche produit	Télécharger la fiche produit

Les propriétés diffèrent selon les variantes et sous-variantes
