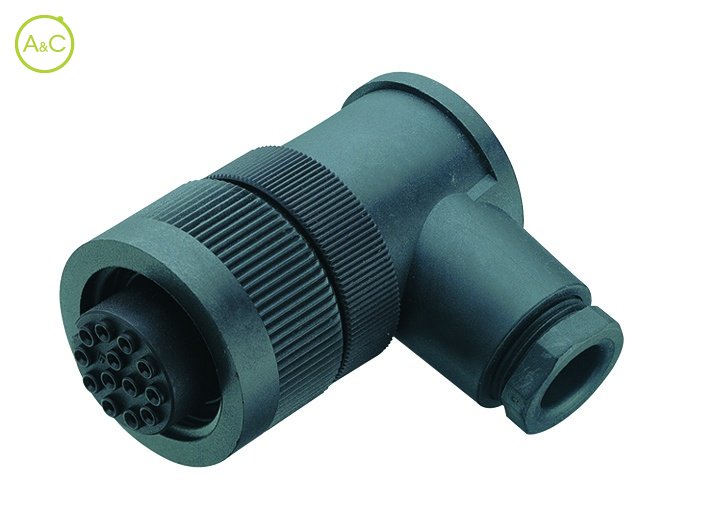

Female angled connector

Avez-vous des questions sur ce produit?

Plus d’infos sur cette marque:

Article Number	99 0710 70 05	99 0710 72 05	99 0710 73 05
Connector Diameter	40 mm	40 mm	40 mm
Number Of Contacts	4+PE contacts	4+PE contacts	4+PE contacts
Connector Locking System	Screw (RD30)	Screw (RD30)	Screw (RD30)
Termination	Screw	Screw	Screw
Wire Section	2.5 mm²	2.5 mm²	2.5 mm²
Protection Degree	IP65	IP65	IP65
Mating Cycles	>500 times	>500 times	>500 times
Upper Temperature	+100 °C	+100 °C	+100 °C
Lower Temperature	-40 °C	-40 °C	-40 °C
Rated Voltage	400	400	400
Rated Impuls Voltage	6000 V	6000 V	6000 V
Pollution Degree	3	3	3
Overvoltage Categorie	III	III	III
Material Group	III	III	III
Rated Current (40°)	20 A	20 A	20 A
Max. Contact Resistance	5 mΩ	5 mΩ	5 mΩ
Material Of Contact	CuSn (Bronze)	CuSn (Bronze)	CuSn (Bronze)
Plating	Ag (Silver)	Ag (Silver)	Ag (Silver)
Material Of Insert	PA (UL 94 HB)	PA (UL 94 HB)	PA (UL 94 HB)
Material Of Housing	PA (UL 94 V-0)	PA (UL 94 V-0)	PA (UL 94 V-0)
Cable Outlet	10-12 mm	12-14 mm	14-18 mm
Fiche produit	Télécharger la fiche produit	Télécharger la fiche produit	Télécharger la fiche produit

Article Number	99 0718 70 13	99 0718 72 13	99 0718 73 13
Connector Diameter	40 mm	40 mm	40 mm
Number Of Contacts	12+PE contacts	12+PE contacts	12+PE contacts
Connector Locking System	Screw (RD30)	Screw (RD30)	Screw (RD30)
Termination	Solder	Solder	Solder
Wire Section	1 mm²	1 mm²	1 mm²
Protection Degree	IP65	IP65	IP65
Mating Cycles	>500 times	>500 times	>500 times
Upper Temperature	+100 °C	+100 °C	+100 °C
Lower Temperature	-40 °C	-40 °C	-40 °C
Rated Voltage	250	250	250
Rated Impuls Voltage	4000 V	4000 V	4000 V
Pollution Degree	3	3	3
Overvoltage Categorie	III	III	III
Material Group	III	III	III
Rated Current (40°)	6 A	6 A	6 A
Max. Contact Resistance	5 mΩ	5 mΩ	5 mΩ
Material Of Contact	CuSn (Bronze)	CuSn (Bronze)	CuSn (Bronze)
Plating	Ag (Silver)	Ag (Silver)	Ag (Silver)
Material Of Insert	PA (UL 94 HB)	PA (UL 94 HB)	PA (UL 94 HB)
Material Of Housing	PA (UL 94 V-0)	PA (UL 94 V-0)	PA (UL 94 V-0)
Cable Outlet	10-12 mm	12-14 mm	14-18 mm
Fiche produit	Télécharger la fiche produit	Télécharger la fiche produit	Télécharger la fiche produit

Article Number	99 0738 70 24	99 0738 72 24	99 0738 73 24
Connector Diameter	40 mm	40 mm	40 mm
Number Of Contacts	24 contacts	24 contacts	24 contacts
Connector Locking System	Screw (RD30)	Screw (RD30)	Screw (RD30)
Termination	Solder	Solder	Solder
Wire Section	0.25 mm²	0.25 mm²	0.25 mm²
Protection Degree	IP65	IP65	IP65
Mating Cycles	>500 times	>500 times	>500 times
Upper Temperature	+100 °C	+100 °C	+100 °C
Lower Temperature	-40 °C	-40 °C	-40 °C
Rated Voltage	125	125	125
Rated Impuls Voltage	2500 V	2500 V	2500 V
Pollution Degree	3	3	3
Overvoltage Categorie	III	III	III
Material Group	III	III	III
Rated Current (40°)	3 A	3 A	3 A
Max. Contact Resistance	3 mΩ	3 mΩ	3 mΩ
Material Of Contact	CuSn (Bronze)	CuSn (Bronze)	CuSn (Bronze)
Plating	Au (Gold)	Au (Gold)	Au (Gold)
Material Of Insert	PA (UL 94 HB)	PA (UL 94 HB)	PA (UL 94 HB)
Material Of Housing	PA (UL 94 V-0)	PA (UL 94 V-0)	PA (UL 94 V-0)
Cable Outlet	10-12 mm	12-14 mm	14-18 mm
Fiche produit	Télécharger la fiche produit	Télécharger la fiche produit	Télécharger la fiche produit

Les propriétés diffèrent selon les variantes et sous-variantes
