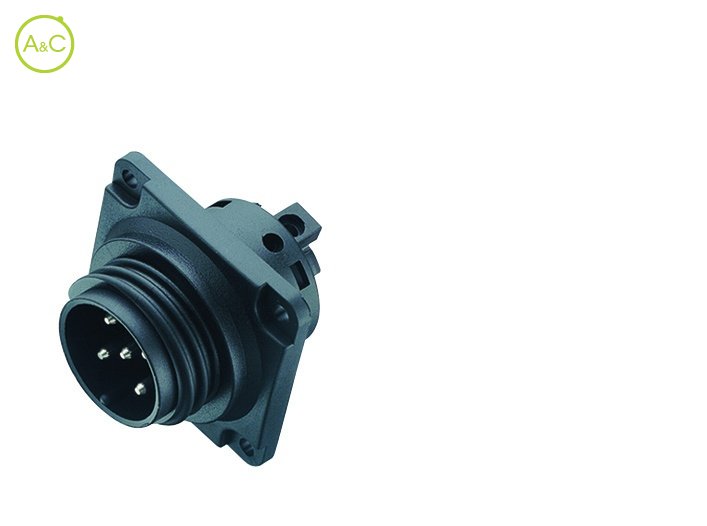

Male panel mount connector

Avez-vous des questions sur ce produit?

Plus d’infos sur cette marque:

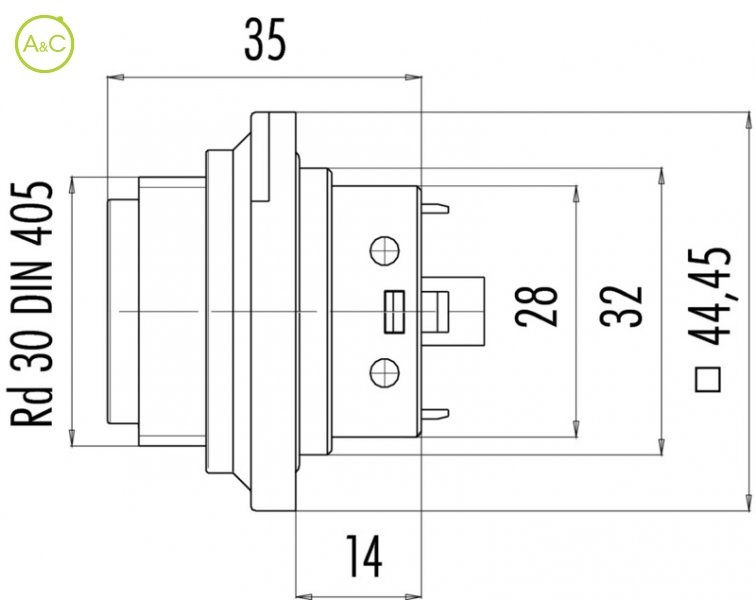

Article Number	99 0711 00 05
Connector Diameter	40 mm
Number Of Contacts	4+PE contacts
Connector Locking System	Screw (RD30)
Termination	Screw
Wire Section	2.5 mm²
Protection Degree	IP65
Mating Cycles	>500 times
Upper Temperature	+100 °C
Lower Temperature	-40 °C
Rated Voltage	400
Rated Impuls Voltage	6000 V
Pollution Degree	3
Overvoltage Categorie	III
Material Group	III
Rated Current (40°)	20 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuZn (Brass)
Plating	Ag (Silver)
Material Of Insert	PA (UL 94 HB)
Material Of Housing	PA (UL 94 V-0)
Fiche produit	Télécharger la fiche produit

Article Number	99 0719 00 13
Connector Diameter	40 mm
Number Of Contacts	12+PE contacts
Connector Locking System	Screw (RD30)
Termination	Solder
Wire Section	1 mm²
Protection Degree	IP65
Mating Cycles	>500 times
Upper Temperature	+100 °C
Lower Temperature	-40 °C
Rated Voltage	250
Rated Impuls Voltage	4000 V
Pollution Degree	3
Overvoltage Categorie	III
Material Group	III
Rated Current (40°)	6 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuZn (Brass)
Plating	Ag (Silver)
Material Of Insert	PA (UL 94 HB)
Material Of Housing	PA (UL 94 V-0)
Fiche produit	Télécharger la fiche produit

Article Number	99 0739 00 24
Connector Diameter	40 mm
Number Of Contacts	24 contacts
Connector Locking System	Screw (RD30)
Termination	Solder
Wire Section	0.25 mm²
Protection Degree	IP65
Mating Cycles	>500 times
Upper Temperature	+100 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	2500 V
Pollution Degree	3
Overvoltage Categorie	III
Material Group	III
Rated Current (40°)	3 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA (UL 94 HB)
Material Of Housing	PA (UL 94 V-0)
Fiche produit	Télécharger la fiche produit

Les propriétés diffèrent selon les variantes et sous-variantes
