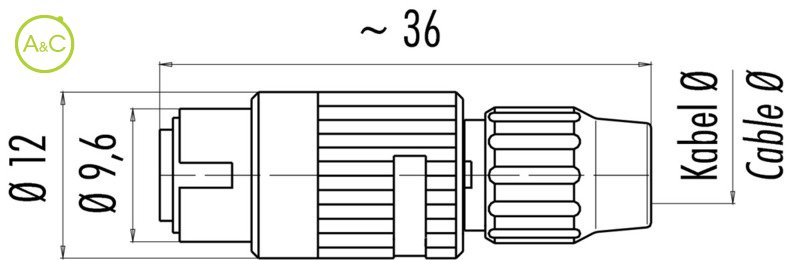

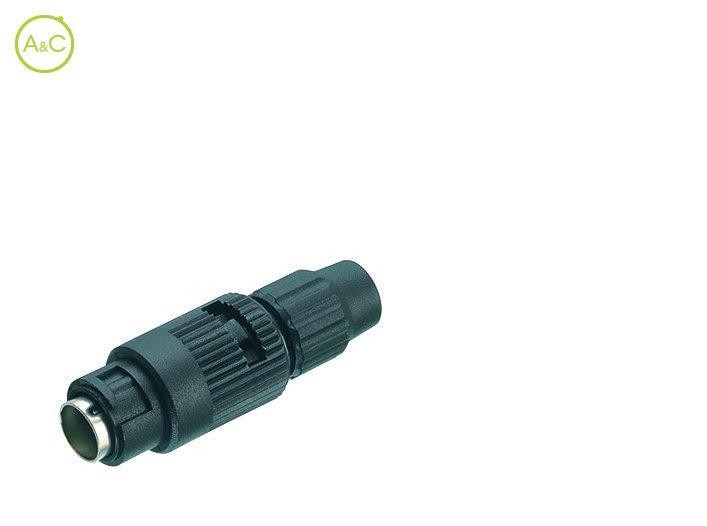

Male cable connector

Avez-vous des questions sur ce produit?

Plus d’infos sur cette marque:

Article Number	99 0971 100 02	99 0971 102 02
Connector Diameter	12 mm	12 mm
Number Of Contacts	2 contacts	2 contacts
Connector Locking System	Bayonet	Bayonet
Termination	Solder	Solder
Wire Section	0.25 mm²	0.25 mm²
Protection Degree	IP40	IP40
Mating Cycles	>500 times	>500 times
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-40 °C	-40 °C
Rated Voltage	125	125
Rated Impuls Voltage	1500 V	1500 V
Pollution Degree	1	1
Overvoltage Categorie	II	II
Material Group	III	III
Rated Current (40°)	4 A	4 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PA (UL 94 V-0)	PA (UL 94 V-0)
Material Of Housing	PA (UL 94 HB)	PA (UL 94 HB)
Fiche produit	Télécharger la fiche produit	Télécharger la fiche produit

Article Number	99 0975 100 03	99 0975 102 03
Connector Diameter	12 mm	12 mm
Number Of Contacts	3 contacts	3 contacts
Connector Locking System	Bayonet	Bayonet
Termination	Solder	Solder
Wire Section	0.25 mm²	0.25 mm²
Protection Degree	IP40	IP40
Mating Cycles	>500 times	>500 times
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-40 °C	-40 °C
Rated Voltage	125	125
Rated Impuls Voltage	1500 V	1500 V
Pollution Degree	1	1
Overvoltage Categorie	II	II
Material Group	III	III
Rated Current (40°)	4 A	4 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PA (UL 94 V-0)	PA (UL 94 V-0)
Material Of Housing	PA (UL 94 HB)	PA (UL 94 HB)
Fiche produit	Télécharger la fiche produit	Télécharger la fiche produit

Article Number	99 0979 100 04	99 0979 102 04
Connector Diameter	12 mm	12 mm
Number Of Contacts	4 contacts	4 contacts
Connector Locking System	Bayonet	Bayonet
Termination	Solder	Solder
Wire Section	0.25 mm²	0.25 mm²
Protection Degree	IP40	IP40
Mating Cycles	>500 times	>500 times
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-40 °C	-40 °C
Rated Voltage	125	125
Rated Impuls Voltage	1500 V	1500 V
Pollution Degree	1	1
Overvoltage Categorie	II	II
Material Group	III	III
Rated Current (40°)	3 A	3 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PA (UL 94 V-0)	PA (UL 94 V-0)
Material Of Housing	PA (UL 94 HB)	PA (UL 94 HB)
Fiche produit	Télécharger la fiche produit	Télécharger la fiche produit

Article Number	99 0995 100 05	99 0995 102 05
Connector Diameter	12 mm	12 mm
Number Of Contacts	5 contacts	5 contacts
Connector Locking System	Bayonet	Bayonet
Termination	Solder	Solder
Wire Section	0.25 mm²	0.25 mm²
Protection Degree	IP40	IP40
Mating Cycles	>500 times	>500 times
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-40 °C	-40 °C
Rated Voltage	125	125
Rated Impuls Voltage	1500 V	1500 V
Pollution Degree	1	1
Overvoltage Categorie	II	II
Material Group	III	III
Rated Current (40°)	3 A	3 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PA (UL 94 V-0)	PA (UL 94 V-0)
Material Of Housing	PA (UL 94 HB)	PA (UL 94 HB)
Fiche produit	Télécharger la fiche produit	Télécharger la fiche produit

Article Number	99 9475 100 07	99 9475 102 07
Connector Diameter	12 mm	12 mm
Number Of Contacts	7 contacts	7 contacts
Connector Locking System	Bayonet	Bayonet
Termination	Solder	Solder
Wire Section	0.14 mm²	0.14 mm²
Protection Degree	IP40	IP40
Mating Cycles	>500 times	>500 times
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-40 °C	-40 °C
Rated Voltage	125	125
Rated Impuls Voltage	1500 V	1500 V
Pollution Degree	1	1
Overvoltage Categorie	II	II
Material Group	III	III
Rated Current (40°)	1 A	1 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PA (UL 94 V-0)	PA (UL 94 V-0)
Material Of Housing	PA (UL 94 HB)	PA (UL 94 HB)
Fiche produit	Télécharger la fiche produit	Télécharger la fiche produit

Article Number	99 9479 100 08	99 9479 102 08
Connector Diameter	12 mm	12 mm
Number Of Contacts	8 contacts	8 contacts
Connector Locking System	Bayonet	Bayonet
Termination	Solder	Solder
Wire Section	0.14 mm²	0.14 mm²
Protection Degree	IP40	IP40
Mating Cycles	>500 times	>500 times
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-40 °C	-40 °C
Rated Voltage	125	125
Rated Impuls Voltage	1500 V	1500 V
Pollution Degree	1	1
Overvoltage Categorie	II	II
Material Group	III	III
Rated Current (40°)	1 A	1 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PA (UL 94 V-0)	PA (UL 94 V-0)
Material Of Housing	PA (UL 94 HB)	PA (UL 94 HB)
Fiche produit	Télécharger la fiche produit	Télécharger la fiche produit

Les propriétés diffèrent selon les variantes et sous-variantes
